AC to DC Power Supplies

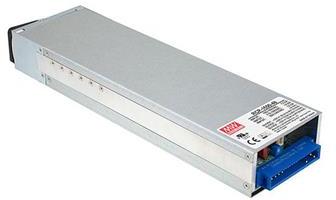

RCP-1600-12

AC/DC Power Supply Single-OUT 12V 125A 1500W

MEAN WELL

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  EA

• Automotive

  Yes

• PPAP

  Unknown

• Type

  Regulated

• Style

  Enclosed

• Input/Output Type

  AC/DC

• Number of Outputs

  1

• Output Type

  Fixed

• Output Voltage (V)

  12

• Output Current (A)

  125

• Output Power (W)

  1500

• Minimum AC Input Voltage (V)

  90

• Typical AC Input Voltage (V)

  110|230

• Maximum AC Input Voltage (V)

  264

• Minimum DC Input Voltage (V)

  250

• Maximum DC Input Voltage (V)

  370

• Minimum Isolation Voltage

  3000VAC

• Line Regulation

  0.5%

• Load Regulation

  0.5%

• Maximum Input Current (A)

  14(Typ)

• Input Frequency (Hz)

  47 to 63

• Tolerance (%)

  ±1

• Efficiency (%)

  88.5(Typ)

• Configurable

  No

• Power Indicator

  Yes

• Ripple and Noise

  150mV(Max)

• Medical

  No

• Minimum Operating Temperature (°C)

  -30

• Maximum Operating Temperature (°C)

  70

• Product Weight (g)

  1870

• Mounting

  Rack

• Package Height

  41

• Package Width

  85

• Package Length

  300 + 20(Max)
