Connector Audio and Video

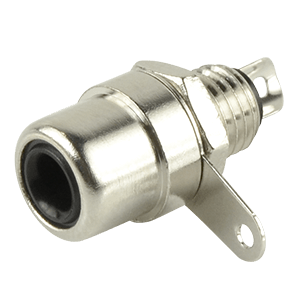

RCJ-032

Conn RCA Jack RCP 2 POS Solder Lug ST Panel Mount 2 Terminal 1 Port

Same Sky (formerly CUI Devices)

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.90.40.00

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  No

• PPAP

  No

• Type

  RCA Jack

• Gender

  RCP

• Number of Contacts

  2

• Number of Terminals

  2

• Number of Ports

  1

• Termination Method

  Solder Lug

• Body Orientation

  Straight

• Insulation Resistance (MOhm)

  100

• Maximum Contact Resistance (mOhm)

  30

• Minimum Operating Temperature (°C)

  -20

• Maximum Operating Temperature (°C)

  85

• Mating Cycle (Cycles)

  5000

• Shell Material

  Brass

• Shell Plating

  Nickel

• Housing Color

  Red

• Product Length (mm)

  21.5

• Mounting

  Panel Mount

• Housing Material

  Polybutylene Terephthalate
