DC to DC Converter and Switching Regulator Module

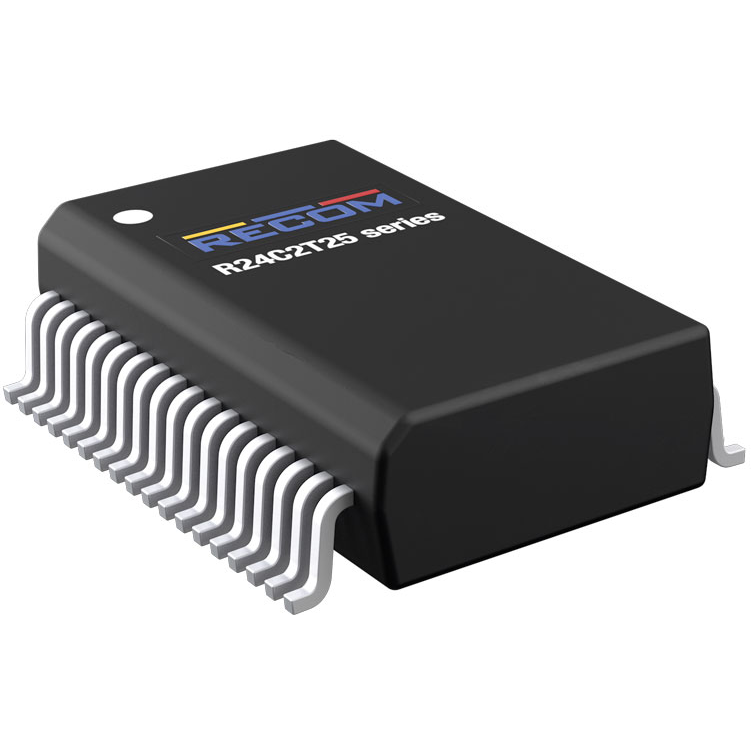

R24C2T25-CT

Module DC-DC 24VIN 1-OUT 15V to 25V 0.1A 2.5W 36-Pin SSOP Bag

RECOM Power GmbH

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• Automotive

  No

• PPAP

  No

• Type

  Step Down

• Isolation

  Isolated

• Number of Outputs

  1

• Minimum Input Voltage (V)

  21

• Typical Input Voltage (V)

  24

• Maximum Input Voltage (V)

  27

• Output Voltage (V)

  15 to 25

• Output Current (A)

  0.1

• Output Power (W)

  2.5

• Minimum Isolation Voltage

  3000VAC

• Input/Output Type

  DC/DC

• Typical Standby Current (mA)

  0.7(Max)

• Maximum Switching Frequency (kHz)

  16000

• Switching Regulator

  Yes

• Efficiency (%)

  55(Typ)

• On/Off Logic

  Positive

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  150

• Packaging

  Bag

• Output Type

  Adjustable

• Mounting

  Surface Mount

• Package Height

  3.18

• Package Width

  7.5

• Package Length

  12.83

• PCB changed

  36

• Supplier Package

  SSOP

• Pin Count

  36
