DC to DC Converter and Switching Regulator Module

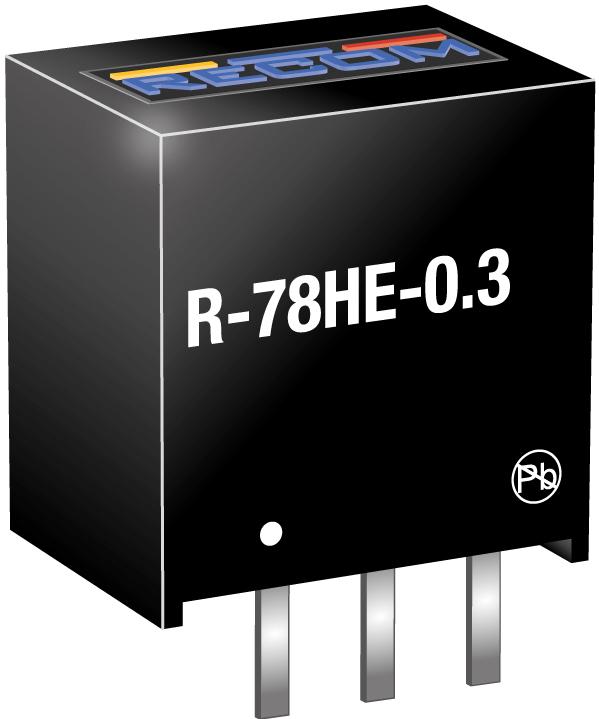

R-78HE5.0-0.3

Module DC-DC 24VIN 1-OUT 5V 0.3A 1.5W 3-Pin SIP Module Tube

RECOM Power GmbH

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8504.40.95.80

• Automotive

  No

• PPAP

  No

• Type

  Step Down

• Isolation

  Non-Isolated

• Number of Outputs

  1

• Minimum Input Voltage (V)

  6.5

• Typical Input Voltage (V)

  24

• Maximum Input Voltage (V)

  72

• Output Voltage (V)

  5

• Output Current (A)

  0.3

• Output Power (W)

  1.5

• Input/Output Type

  DC/DC

• Maximum Switching Frequency (kHz)

  135(Typ)

• Switching Regulator

  Yes

• Load Regulation

  1%(Typ)

• Line Regulation

  1.5%

• Efficiency (%)

  83

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  115

• Packaging

  Tube

• Product Weight (g)

  2.6

• Output Type

  Fixed

• Mounting

  Through Hole

• Package Height

  12.5

• Package Width

  8.5

• Package Length

  11.5

• PCB changed

  3

• Standard Package Name

  SIP

• Supplier Package

  SIP Module

• Pin Count

  3
