AC to DC Power Supplies

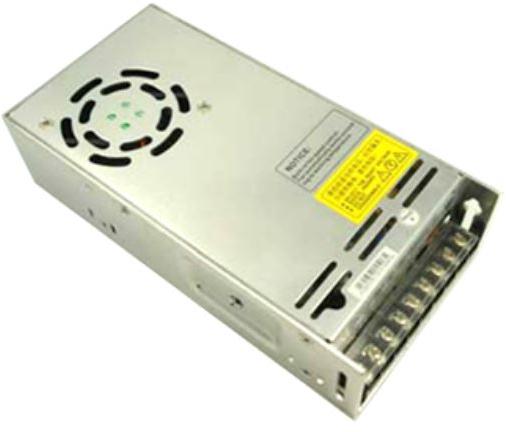

QGKF-320-24

AC/DC Power Supply Single-OUT 24V 13A 320W 9-Pin

Qualtek Electronics

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8504.40.95.30

• Type

  Regulated

• Style

  Enclosed

• Input/Output Type

  AC/DC

• Number of Outputs

  1

• Output Type

  Fixed

• Output Voltage (V)

  24

• Output Current (A)

  13

• Output Power (W)

  320

• Minimum AC Input Voltage (V)

  85

• Maximum AC Input Voltage (V)

  264

• Minimum DC Input Voltage (V)

  120

• Maximum DC Input Voltage (V)

  370

• Minimum Isolation Voltage

  3000VAC

• Line Regulation

  0.5%

• Load Regulation

  1%

• Maximum Input Current (A)

  4.5

• Input Frequency (Hz)

  47 to 63

• Tolerance (%)

  ±1

• Efficiency (%)

  87(Typ)

• Configurable

  No

• Input Connector Type

  Screw Terminal Block

• Output Connector Type

  Screw Terminal Block

• Power Indicator

  No

• Ripple and Noise

  200mV(Max)

• Medical

  No

• Minimum Operating Temperature (°C)

  -25

• Maximum Operating Temperature (°C)

  70

• Product Weight (g)

  9800

• Mounting

  Chassis

• Package Height

  50 mm

• Package Width

  99 mm

• Package Length

  199 mm

• PCB changed

  9

• Pin Count

  9
