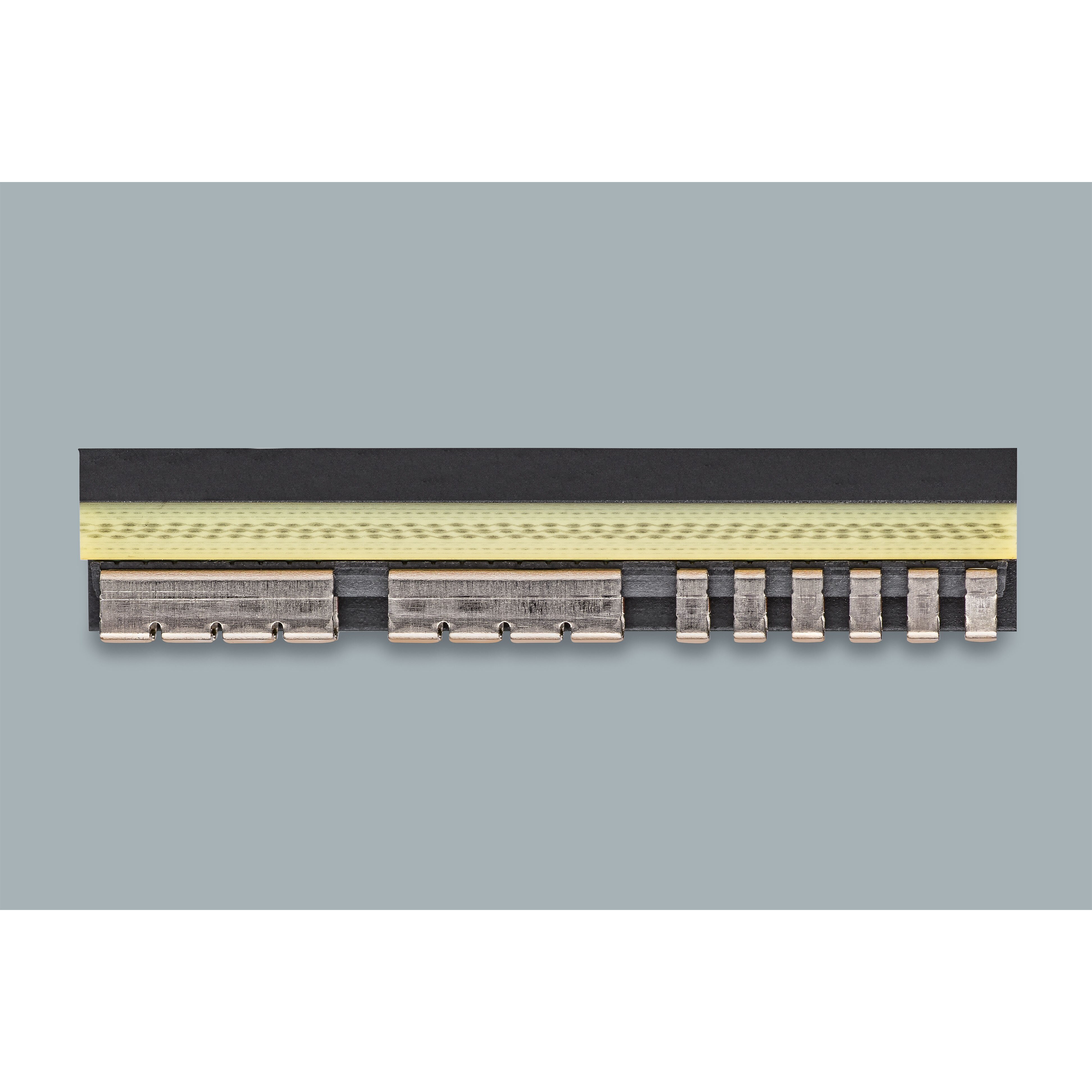

DC to DC Converter and Switching Regulator Module

PRM48AF480M400A00

Module DC-DC 48VIN 1-OUT 20V to 55V 8.33A 400W 56-Pin Full-Chip

Vicor

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8542.39.00.90

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  No

• PPAP

  No

• Type

  Step Down|Step Up

• Isolation

  Non-Isolated

• Number of Outputs

  1

• Minimum Input Voltage (V)

  36

• Typical Input Voltage (V)

  48

• Maximum Input Voltage (V)

  75

• Output Voltage (V)

  20 to 55

• Output Current (A)

  8.33

• Output Power (W)

  400

• Maximum Switching Frequency (kHz)

  0.935 to 1.065

• Switching Regulator

  Yes

• Load Regulation

  0.02%(Typ)

• Line Regulation

  0.02%(Typ)

• Efficiency (%)

  97.5(Typ)

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  125

• Output Type

  Adjustable

• Mounting

  Surface Mount

• Package Width

  22

• Package Length

  32.5

• PCB changed

  56

• Supplier Package

  Full-Chip

• Pin Count

  56
