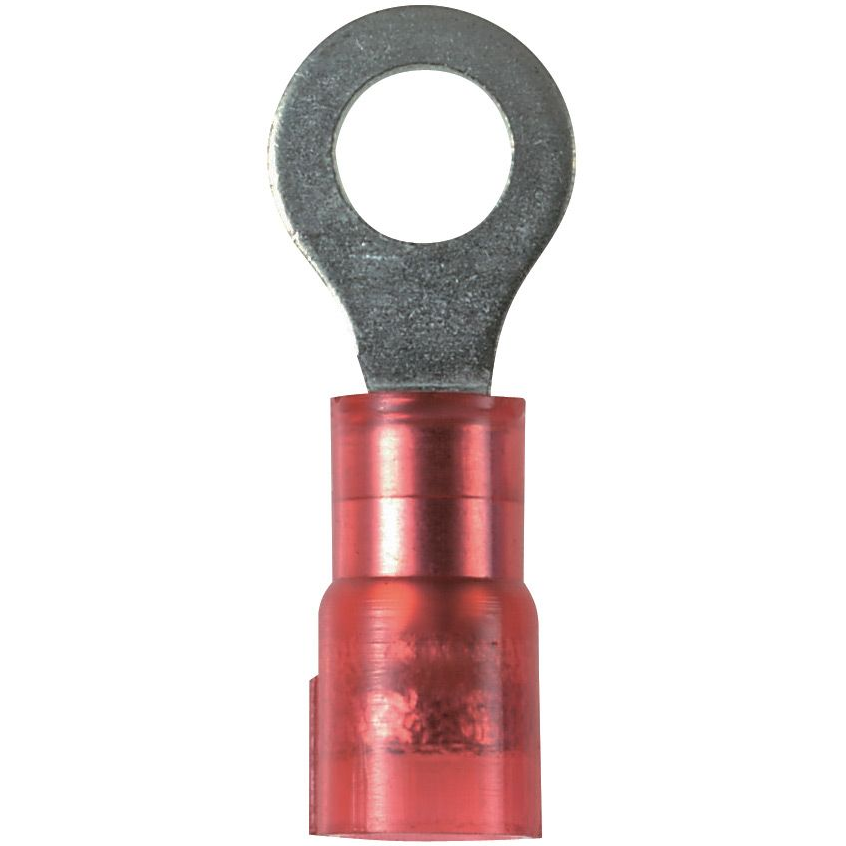

PanduitPNF18-8R-MConnector Terminals
Ring Tongue Terminal 18-22AWG Copper Red 22.1mm Tin Box
| Compliant | |
| EAR99 | |
| Active | |
| 8544.49.3080 | |
| SVHC | Yes |
| Automotive | No |
| PPAP | No |
| Ring Tongue Terminal | |
| Crimp | |
| Straight | |
| 4.16 | |
| Tin | |
| 18-22 | |
| 600V | |
| 105 | |
| Nylon | |
| Box | |
| 22.1 | |
| 7.87 | |
| Red | |
| Cable Mount |
The ring tongue terminal PNF18-8R-M wire terminal from Panduit is the best way to connect to your circuit's terminal blocks. Its wire is 18-22 AWG. This product is 22.1 mm long and 7.87 mm.
