AC to DC Power Supplies

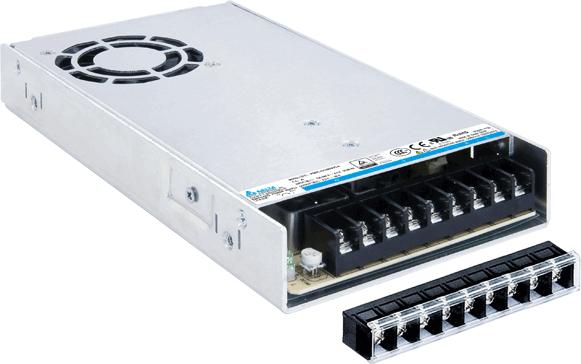

PMR-4V320WCAA

AC/DC Power Supply Single-OUT 4.2V 60A 320W 10-Pin Carton

Delta Electronics

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8504.40.60.12

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  No

• PPAP

  No

• Type

  Regulated

• Style

  Enclosed

• Input/Output Type

  AC/DC

• Number of Outputs

  1

• Output Type

  Fixed

• Output Voltage (V)

  4.2

• Output Current (A)

  60

• Output Power (W)

  320

• Minimum AC Input Voltage (V)

  88

• Maximum AC Input Voltage (V)

  264

• Minimum Isolation Voltage

  3000VAC

• Line Regulation

  0.5%(Typ)

• Load Regulation

  1%(Typ)

• Maximum Input Current (A)

  3

• Input Frequency (Hz)

  47 to 63

• Tolerance (%)

  ±1

• Efficiency (%)

  83.5(Typ)

• Configurable

  No

• Input Connector Type

  Screw Terminal Block

• Output Connector Type

  Screw Terminal Block

• Power Indicator

  Yes

• Medical

  No

• Minimum Operating Temperature (°C)

  -10

• Maximum Operating Temperature (°C)

  70

• Packaging

  Carton

• Product Weight (g)

  760

• Mounting

  Panel

• Package Height

  30

• Package Width

  115

• Package Length

  215

• PCB changed

  10

• Pin Count

  10
