Microcontrollers - MCUs

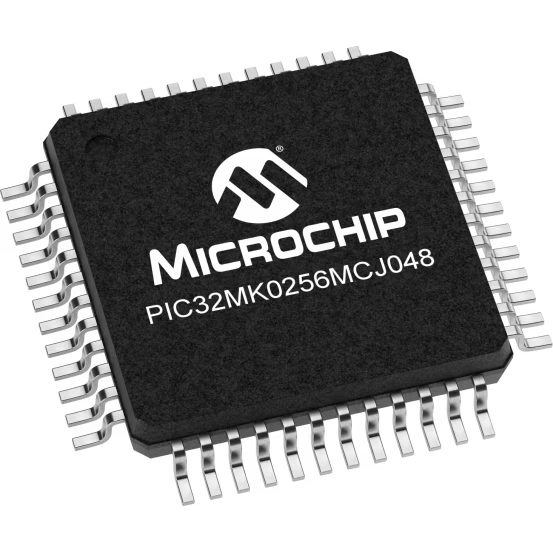

PIC32MK0256MCJ048T-E/Y8X

MCU 32-bit PIC RISC 256KB Flash 3.3V 48-Pin TQFP T/R Automotive AEC-Q100

Microchip Technology

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  3A991.a.2

• Part Status

  Active

• HTS

  8542.31.00.25

• Automotive

  Yes

• PPAP

  Unknown

• Family Name

  PIC32

• Instruction Set Architecture

  RISC

• Device Core

  PIC

• Core Architecture

  PIC

• Maximum CPU Frequency (MHz)

  80

• Maximum Clock Rate (MHz)

  80

• Data Bus Width (bit)

  32

• Program Memory Type

  Flash

• Program Memory Size

  256KB

• RAM Size

  64KB

• Programmability

  Yes

• Interface Type

  CAN/I2C/I2S/SPI/UART

• Number of I/Os

  37

• No. of Timers

  9

• Number of ADCs

  1

• ADC Channels

  18

• ADC Resolution (bit)

  12

• Number of DACs

  2

• DAC Resolution (bit)

  12/12

• USART

  0

• UART

  2

• USB

  0

• SPI

  2

• I2C

  2

• I2S

  2

• CAN

  1

• Ethernet

  0

• Minimum Operating Supply Voltage (V)

  2.3

• Typical Operating Supply Voltage (V)

  3.3

• Maximum Operating Supply Voltage (V)

  3.6

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  125

• Supplier Temperature Grade

  Extended

• Mounting

  Surface Mount

• Package Height

  1

• Package Width

  7

• Package Length

  7

• PCB changed

  48

• Standard Package Name

  QFP

• Supplier Package

  TQFP

• Pin Count

  48
