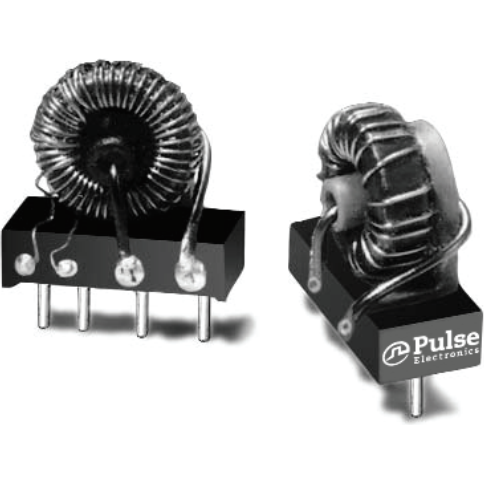

Pulse ElectronicsPE-64978NLCurrent Transformers
Current Transformer 1:50 1250Vrms 0.006Ohm Prim. DCR 0.24Ohm Sec. DCR 4 Terminal Pin Thru-Hole
| Compliant | |
| EAR99 | |
| Active | |
| 8504.50.40.00 | |
| Automotive | No |
| PPAP | No |
| Current Sense Transformer | |
| 1:50 | |
| 4000 | |
| 0.006(Typ) | |
| 0.24 | |
| 1250Vrms | |
| Pin | |
| Through Hole | |
| 4 | |
| -40 | |
| 130 | |
| 13.97 | |
| 9.65 | |
| 14.73 |
Easily step down high alternating current with this PE-64978NL current transformer from Pulse. It has an operating frequency of 200K to 500K Hz. This current transformer has a minimum operating temperature of -40 °C and a maximum of 130 °C. It has 4 terminals. It also has a current sense transformer. This product is 13.97 mm long, 14.73 mm tall and 9.65 mm deep. The maximum DCR on the primary side is 0.006(Typ) Ohm, while its 0.24 Ohm on the secondary side. It has a turn ratio of 1:50.
