Connector Card Edge

PCIE-164-02-F-D-TH

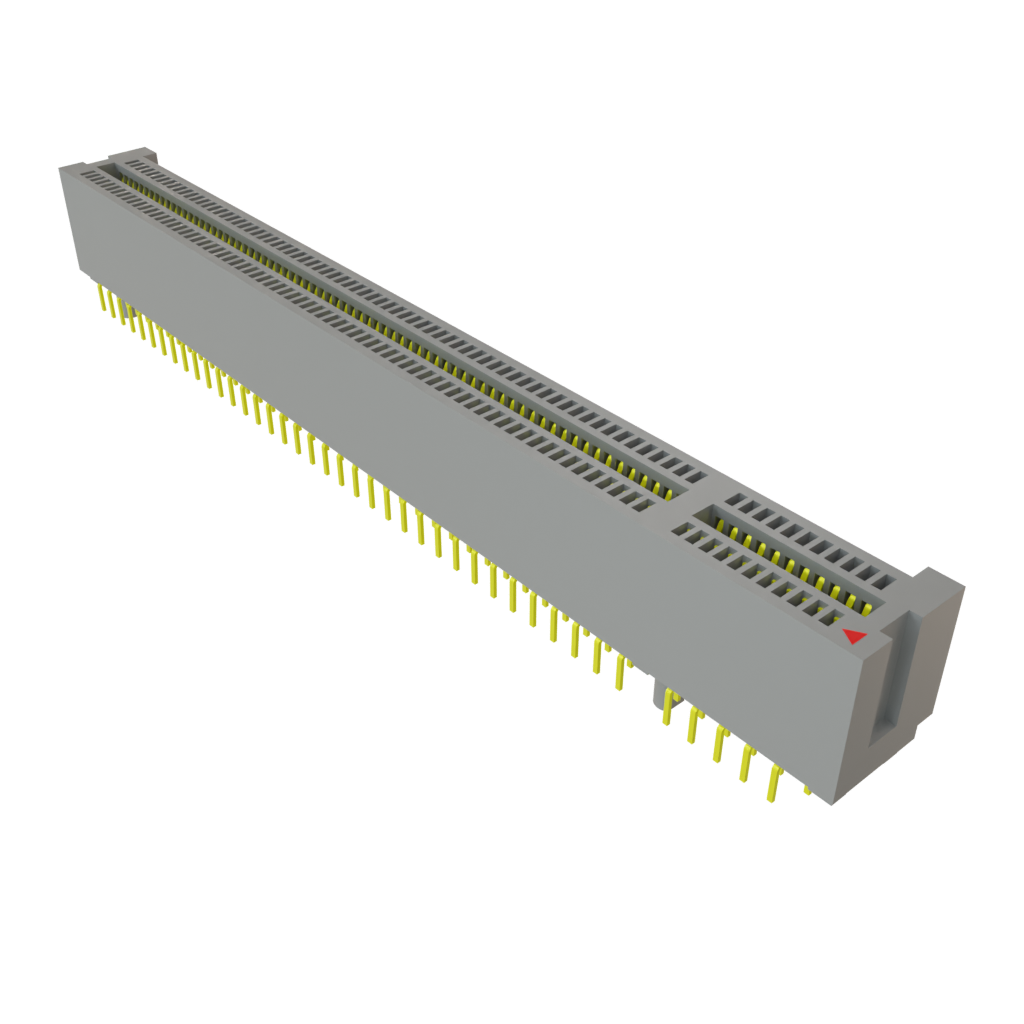

Conn PCI Express Card Edge RCP 164 POS 1mm Solder ST Thru-Hole PCI Express® Tube

Samtec

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.40

• Automotive

  No

• PPAP

  No

• Type

  PCI Express Card Edge

• Gender

  RCP

• Card Type

  PCI Express

• Card Thickness (mm)

  1.57

• Number of Contacts

  164

• Number of Rows

  2

• Termination Method

  Solder

• Contact Type

  Cantilever Bellows

• Terminal Pitch (mm)

  1

• Body Orientation

  Straight

• Mounting Styles

  Alignment Pin

• Maximum Current Rating (A)

  2.4/Contact

• Maximum Voltage Rating

  215VAC/304VAC

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  125

• Packaging

  Tube

• Product Length (mm)

  89

• Product Depth (mm)

  8.6

• Product Height (mm)

  11

• Tail Cross Section (mm)

  0.35x0.25

• Tail Length (mm)

  2.31

• Tradename

  PCI Express®

• Mounting

  Through Hole
