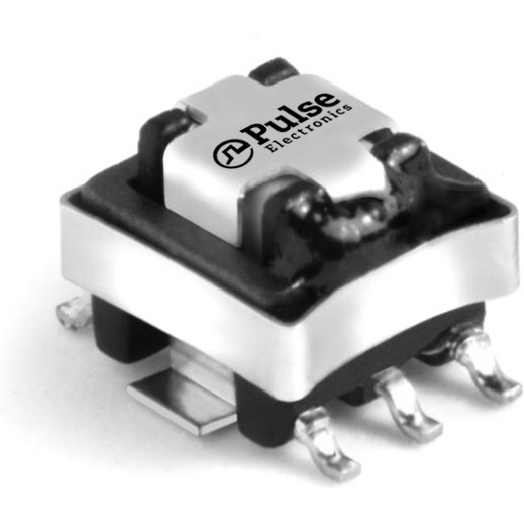

P8208NLT

Current Transformer 1:100 500Vrms 0.006Ohm Prim. DCR 6Ohm Sec. DCR 10000mA Prim. 6 Terminal Gull Wing SMD

Pulse Electronics

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  COMPONENTS

• SVHC

  Yes

• Automotive

  No

• PPAP

  No

• Transformer Type

  Current Sense Transformer

• Turns Ratio

  1:100

• Primary Side Current (mA)

  10000

• Secondary Side Inductance (uH)

  2000

• Maximum DCR Primary Side (Ohm)

  0.006

• Maximum DCR Secondary Side (Ohm)

  6

• High Potential

  500Vrms

• Lead Style

  Gull Wing

• Mounting

  Surface Mount

• Number of Terminals

  6

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  130

• Package Type

  SMD

• Packaging

  Tape and Reel

• Product Weight (g)

  0.34

• Product Length (mm)

  7.21

• Product Depth (mm)

  8.38

• Product Height (mm)

  5.5
