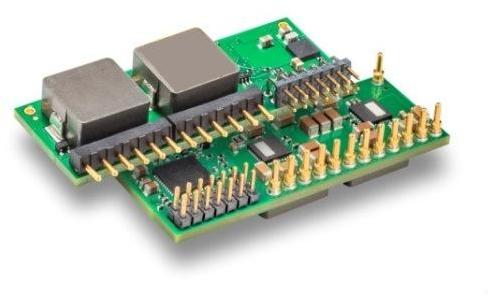

DC to DC Converter and Switching Regulator Module

OKDY-T/90-W12-001-C

Module DC-DC 1-OUT 0.6V to 1.8V 90A 162W 26-Pin SMD Module T/R

Murata Power Solutions

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Obsolete

• HTS

  8504.40.95.80

• Automotive

  No

• PPAP

  No

• Type

  Step Down

• Isolation

  Non-Isolated

• Number of Outputs

  1

• Minimum Input Voltage (V)

  7.5

• Maximum Input Voltage (V)

  14

• Output Voltage (V)

  0.6 to 1.8

• Output Current (A)

  90

• Output Power (W)

  162

• Input/Output Type

  DC/DC

• Maximum Switching Frequency (kHz)

  320(Typ)

• Switching Regulator

  Yes

• Load Regulation

  2mV(Typ)

• Line Regulation

  2mV(Typ)

• Efficiency (%)

  94.3(Typ)

• On/Off Logic

  Positive

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  150

• Packaging

  Tape and Reel

• Product Weight (g)

  565

• Output Type

  Adjustable

• Mounting

  Surface Mount

• Package Height

  10(Max)

• Package Width

  19.05

• Package Length

  50.8

• PCB changed

  26

• Supplier Package

  SMD Module

• Pin Count

  26
