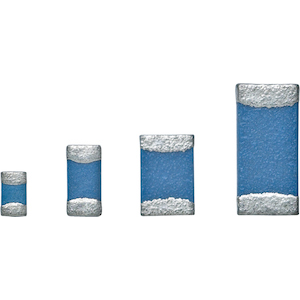

VishayNTHS0805N02N5001JEThermistors
Thermistor NTC 5K Ohm 5% 2-Pin 0805 Surface Mount Solder Pad 3486K -4 to -3.5 T/R
| Compliant with Exemption | |
| EAR99 | |
| Obsolete | |
| 8533.40.80.70 | |
| Automotive | No |
| PPAP | Unknown |
| NTC | |
| 2 | |
| -4 to -3.5 | |
| -3.84%/K | |
| 10 | |
| 5 to 15 | |
| 3486 | |
| 3400 to 3600 | |
| ±3% | |
| -40 | |
| 125 | |
| 5000 | |
| 1500 to 6000 | |
| ±5 | |
| ±5 to ±10 | |
| Temperature Sensing|Temperature Protection|Temperature Compensation | |
| Tape and Reel | |
| 2.01 | |
| 1.25 | |
| 1.45(Max) | |
| ±0.2 | |
| ±0.2 | |
| Solder Pad | |
| Surface Mount |
This NTHS0805N02N5001JE thermistor by Vishay is an ideal temperature-sensing component to use in circuits where space is valuable. This part has a minimum operating temperature of -40 °C and a maximum of 125 °C. It has 2 terminals. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product is 2.01 mm long, 1.45(Max) mm tall and 1.25 mm deep.
