TFT Modules

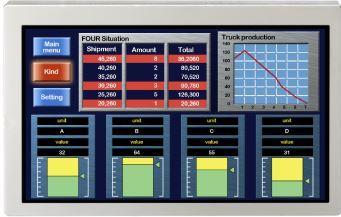

NL8048AC19-13BD

7in TFT WVGA 800x480Pixels LVDS 430cd/m2 LED Backlight -30°C to 80°C 126-Pin Box

Tianma Microelectronics Co., Ltd

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  LTB

• HTS

  8528.59.33.70

• Display Size (in)

  7

• Pixel Format (Pixels)

  800x480

• Resolution Standard

  WVGA

• Aspect Ratio

  5:3

• Typical Contrast Ratio

  800:1

• Typical Brightness (cd/m2)

  430

• Backlight

  LED

• Display Color (Colors)

  262,144

• Viewing Angle (°)

  160/160

• Touchscreen

  No

• Active Area (mm)

  152.4x91.44

• Outline Dimensions (mm)

  170x111x10.6

• Typical Response Time (ms)

  8

• Interface Type

  LVDS

• Minimum Operating Supply Voltage (V)

  3

• Typical Operating Supply Voltage (V)

  3.3

• Maximum Operating Supply Voltage (V)

  3.6

• Typical Power Consumption (W)

  3.3

• Minimum Operating Temperature (°C)

  -30

• Maximum Operating Temperature (°C)

  80

• Packaging

  Box

• Mounting

  Panel

• Package Height

  111 mm

• Package Width

  10.6 mm

• Package Length

  170 mm

• PCB changed

  126

• Pin Count

  126
