Connector Telephone and Telecom

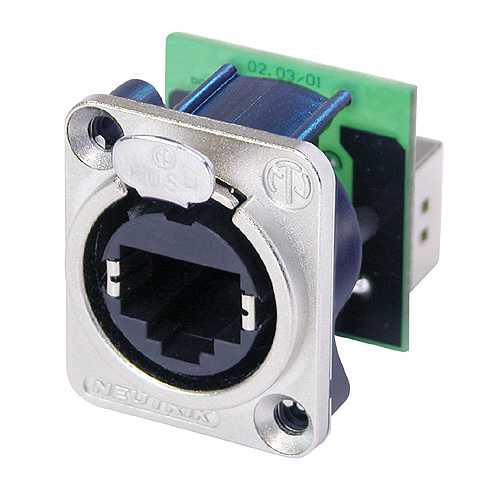

NE8FDP

Conn RJ-45 RCP 8 POS ST Panel Mount 8 Terminal 1 Port Cat 5e

Neutrik Group

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.51

• Automotive

  Unknown

• PPAP

  Unknown

• Type

  RJ-45

• Gender

  RCP

• Number of Terminals

  8

• Number of Contacts

  8

• Number of Ports

  1

• Number of Loaded Positions

  8

• Category Number

  Cat 5e

• Body Orientation

  Straight

• Maximum Current Rating (A)

  1.5/Contact

• Maximum Voltage Rating

  57V

• Insulation Resistance (MOhm)

  500

• Maximum Contact Resistance (mOhm)

  10

• Mating Cycle (Cycles)

  1000

• Integrated Magnetics

  No

• Shell Material

  Zinc Die Cast

• Shell Plating

  Nickel

• Minimum Operating Temperature (°C)

  -30

• Shielding

  Yes

• Maximum Operating Temperature (°C)

  80

• Product Style

  Single

• Product Length (mm)

  26

• Spring Option

  No

• Tab Direction

  Down

• Distance Between Begs (mm)

  19

• Mounting

  Panel Mount
