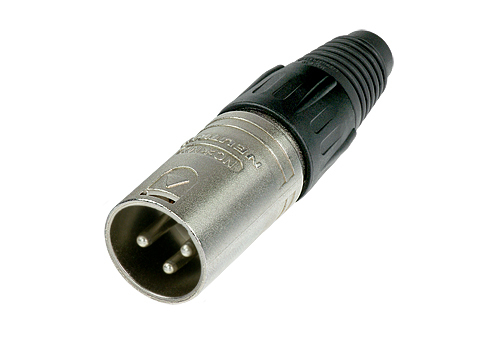

Connector Audio and Video

NC3MX

Conn XLR Connector PL 3 POS Solder ST Cable Mount 3 Terminal 1 Port

Neutrik Group

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Obsolete

• HTS

  8536.69.40.51

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  Unknown

• PPAP

  Unknown

• Type

  XLR Connector

• Gender

  PL

• Number of Contacts

  3

• Number of Terminals

  3

• Number of Ports

  1

• Termination Method

  Solder

• Body Orientation

  Straight

• Maximum Current Rating (A)

  16/Contact

• Maximum Voltage Rating

  50V

• Insulation Resistance (MOhm)

  10000

• Maximum Contact Resistance (mOhm)

  3

• Minimum Operating Temperature (°C)

  -30

• Maximum Operating Temperature (°C)

  80

• Mating Cycle (Cycles)

  1000

• Shell Material

  Zinc Die Cast

• Shell Plating

  Nickel

• Housing Color

  Black

• Product Diameter (mm)

  19

• Product Length (mm)

  69

• Mounting

  Cable Mount

• Contact Plating

  Silver

• Contact Material

  Brass
