SamtecMUSBS-05-S-B-TH-TRConnector USB
Conn Mini USB Type B RCP 5 POS 0.8mm Solder ST Thru-Hole 5 Terminal 1 Port T/R
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| Mini USB Type B | |
| RCP | |
| 5 | |
| 5 | |
| 1 | |
| Solder | |
| 0.8 | |
| Straight | |
| 3.1/Contact | |
| 30VAC | |
| IP68 | |
| 50 | |
| 5000 | |
| Phosphor Bronze | |
| Nickel | |
| -50 | |
| 85 | |
| Tape and Reel | |
| 11.5 | |
| 7.7 | |
| 10.54 | |
| Through Hole |

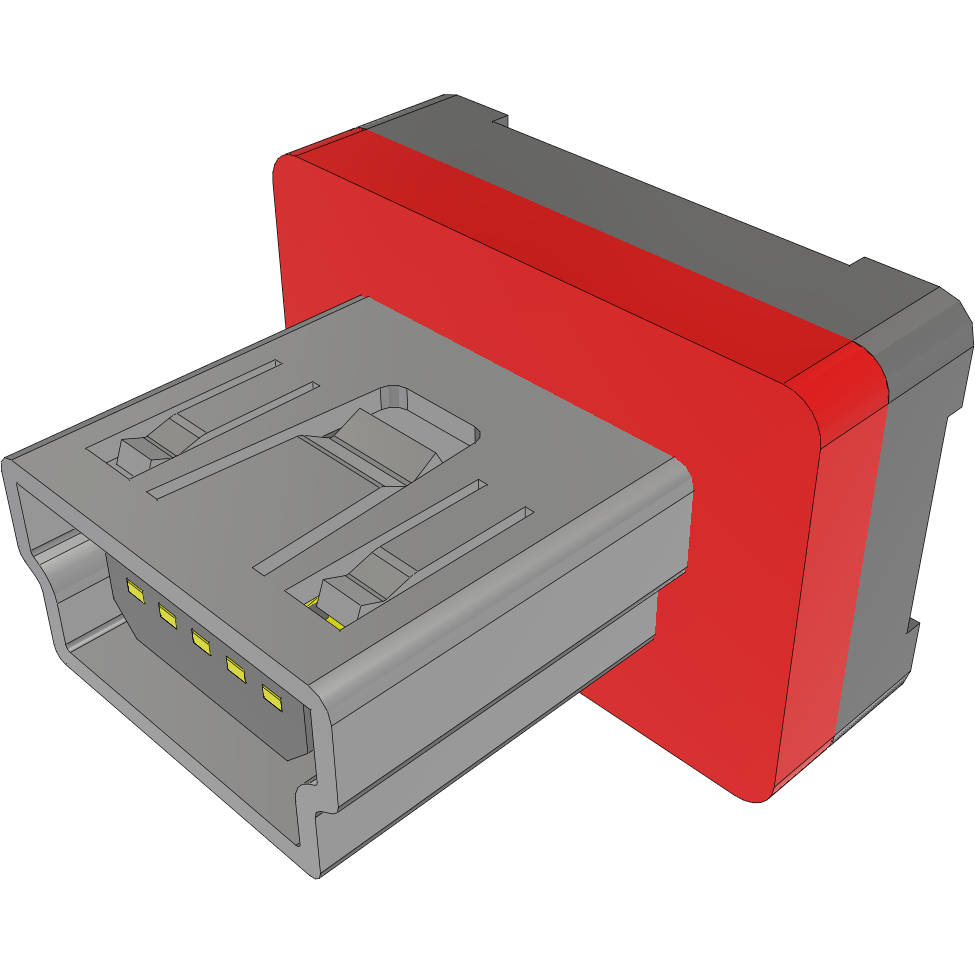

Make your product's components work properly with the mini USB type b MUSBS-05-S-B-TH-TR audio and video connector from Samtec. This M connector's 5 contacts that are made out of phosphor bronze and plated with gold. It has a maximum voltage rating of 30 VAC. This connector has a single port. It has a right angle body orientation. It has a male type gender. MUSBS-05-S-B-TH-TR is housed in thermoplastic. This device has a maximum current rating of 3.1 A/contact. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 11.5 mm long, 10.54 mm tall and 7.7 mm deep. Its 5 terminals use the solder termination method.
