Connector Circular

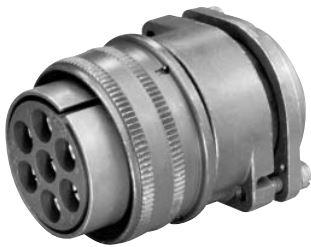

MS3106R8S-1P

Conn Circular PIN 1 POS Solder Cup ST Cable Mount 1 Terminal 1 Port

Amphenol

Product Technical Specifications

• EU RoHS

  Not Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  EA

• Automotive

  No

• PPAP

  No

• Military Standard

  MIL-DTL-5015

• Type

  Circular

• Gender

  PL

• Mounting

  Cable Mount

• Body Orientation

  Straight

• Polarization

  N

• Number of Ports

  1

• Number of Contacts

  1

• Number of Terminals

  1

• Contact Gender

  PIN

• Termination Method

  Solder Cup

• Shell Size / Insert Arrangement

  8S-1

• Wire Size (AWG)

  0-22

• Less Contact

  No

• Contact Material

  Copper Alloy

• Contact Plating

  Silver

• Shell Material

  Aluminum Alloy

• Shell Plating

  Chromate Over Conductive Cadmium

• Housing Color

  Olive Drab

• Maximum Voltage Rating

  700VDC|500VAC

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  125

• IP Rating

  IP67

• Mating Style

  Threaded

• Product Length (mm)

  40.33

• Product Depth (mm)

  24.35

• Product Height (mm)

  18.82
