Connector Headers and PCB Receptacles

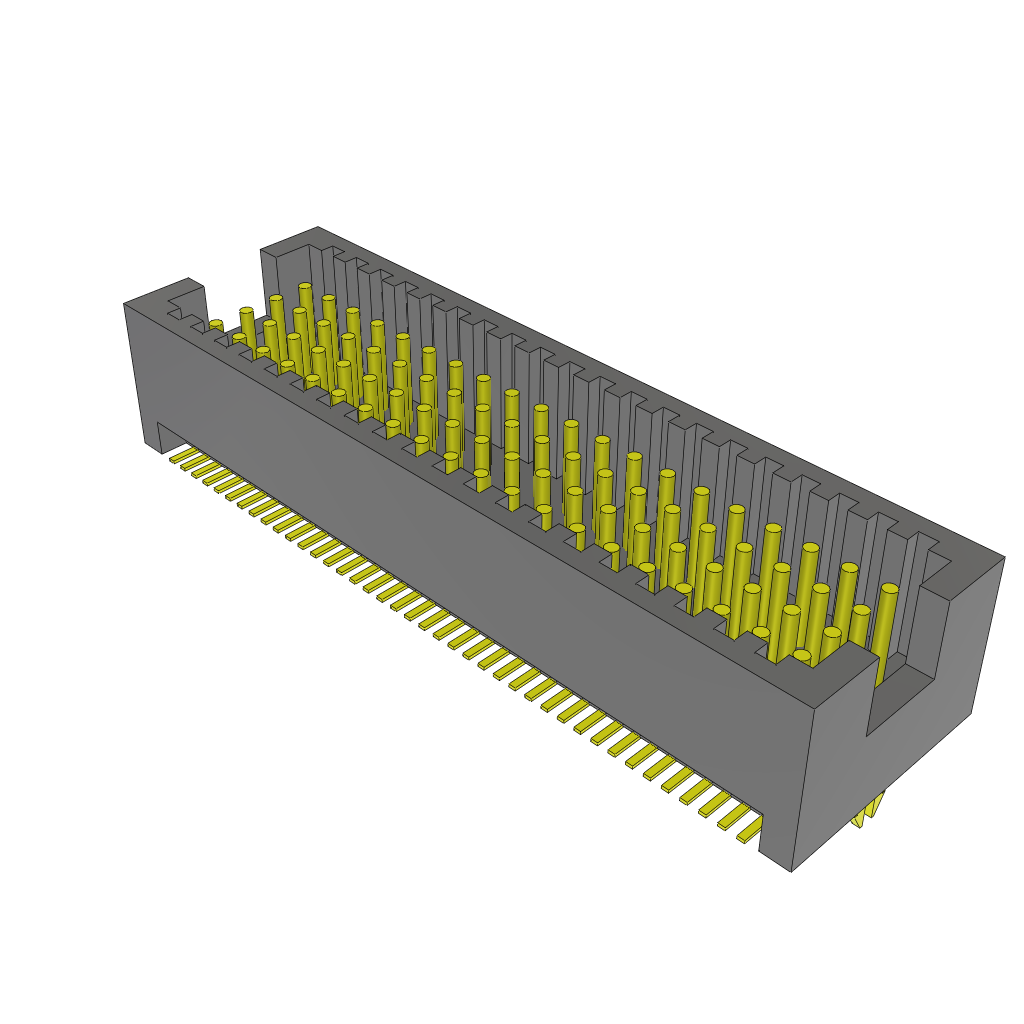

MOLC-120-02-S-Q-LC

Conn Shrouded Header (4 Sides) HDR 80 POS 1.27mm Solder ST SMD Tube

Samtec

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.40

• Automotive

  No

• PPAP

  No

• Type

  Shrouded Header (4 Sides)

• Gender

  HDR

• Number of Contacts

  80

• Number of Rows

  4

• Termination Method

  Solder

• Terminal Pitch (mm)

  1.27

• Body Orientation

  Straight

• Polarization Type

  Dual Slot

• Row Spacing (mm)

  1.27

• Maximum Current Rating (A)

  3.8/Contact

• Maximum Voltage Rating

  165VAC|230VDC

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  125

• Packaging

  Tube

• Product Length (mm)

  27.94

• Product Depth (mm)

  8.26

• Product Height (mm)

  5.54

• Mounting

  Surface Mount
