SwitchcraftMN112BXConnector Audio and Video
Conn 1/4" Phone Jack F 3 POS Solder Lug ST Panel Mount 3 Terminal 1 Port
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.51 | |
| Automotive | No |
| PPAP | No |
| 1/4" Phone Jack | |
| F | |
| 3 | |
| 3 | |
| 1 | |
| Solder Lug | |
| Straight | |
| 3 | |
| 48VDC | |
| -20 | |
| 65 | |
| 15.9 | |
| 34.8 | |
| 15.9 | |
| Panel Mount | |
| Thermoplastic | |
| Tin | |
| Copper Alloy |

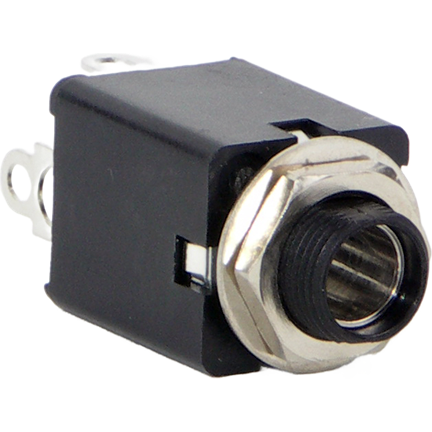

Make your project the best it can be by using this 1/4\" phone jack MN112BX audio and video connector from Switchcraft. This F connector's 3 contacts that are made out of copper alloy and plated with tin. It has a female type gender. It has a maximum voltage rating of 48 VDC. It has a straight body orientation. This connector has a single port. This device has a maximum current rating of 3 A. MN112BX is housed in thermoplastic. This part has an operating temperature range of -20 °C to 65 °C. Its 3 terminals use the solder lug termination method. This product is 15.9 mm long, 15.9 mm tall and 34.8 mm deep.
