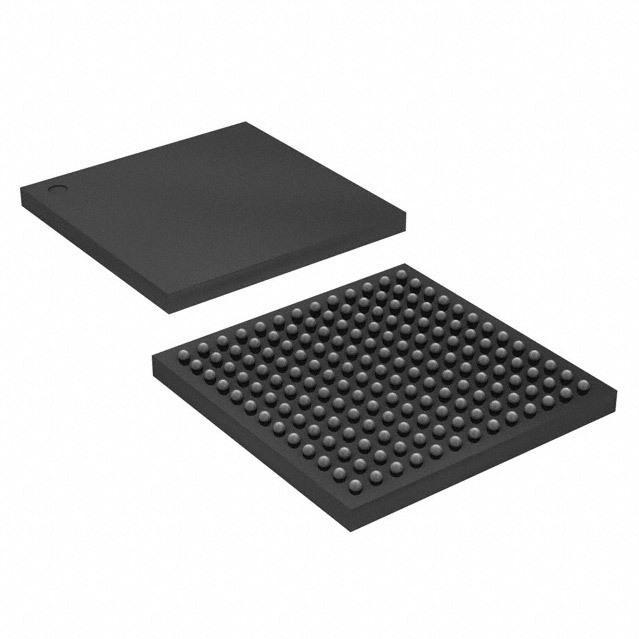

MK26FN2M0VMI18

MCU 32-bit ARM Cortex M4 RISC 2MB Flash 2.5V/3.3V 169-Pin MAP-BGA Tray Automotive AEC-Q100

NXP Semiconductors

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  3A991a.2.

• Part Status

  Active

• HTS

  8542.31.00.25

• SVHC

  Yes

• Automotive

  Yes

• PPAP

  Yes

• Family Name

  K26

• Instruction Set Architecture

  RISC

• Device Core

  ARM Cortex M4

• Core Architecture

  ARM

• Maximum CPU Frequency (MHz)

  180

• Maximum Clock Frequency (MHz)

  180

• Data Bus Width (bit)

  32

• Program Memory Type

  Flash

• Program Memory Size

  2MB

• RAM Size

  256KB

• Programmability

  Yes

• Interface Type

  CAN/I2C/I2S/SPI/UART/USB

• Number of I/Os

  116

• No. of Timers

  11

• Number of ADCs

  2

• ADC Channels

  5/6

• ADC Resolution (bit)

  16/16

• Number of DACs

  2

• DAC Channels

  2

• DAC Resolution (bit)

  12/12

• USART

  0

• UART

  6

• USB

  4

• SPI

  3

• I2C

  4

• I2S

  1

• CAN

  2

• Ethernet

  0

• Minimum Operating Supply Voltage (V)

  1.71

• Typical Operating Supply Voltage (V)

  2.5|3.3

• Maximum Operating Supply Voltage (V)

  3.6

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  105

• Packaging

  Tray

• Mounting

  Surface Mount

• Package Height

  1.03(Max)

• Package Width

  9

• Package Length

  9

• PCB changed

  169

• Standard Package Name

  BGA

• Supplier Package

  MAP-BGA

• Pin Count

  169
