Counter Shift Registers

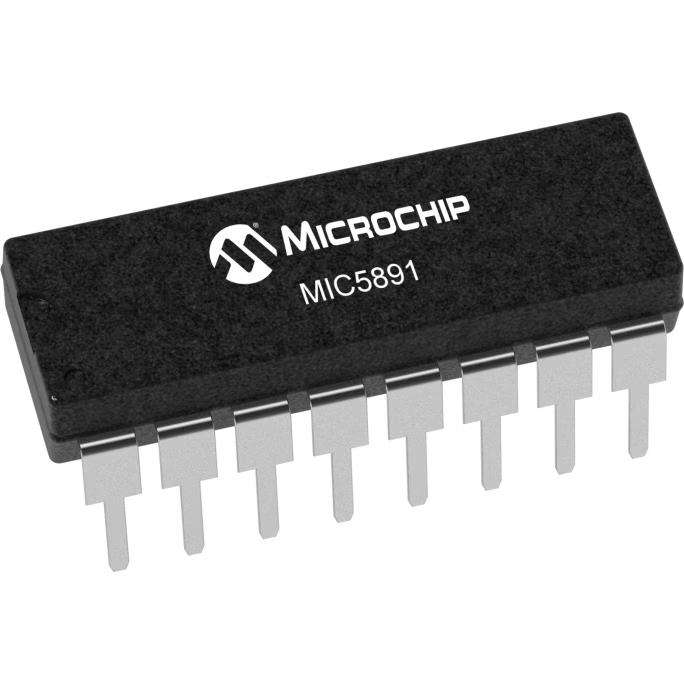

MIC5891YN

Shift Register/Latch/Driver Single 8-Bit Serial to Serial/Parallel 16-Pin PDIP Tube

Microchip Technology

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8542.39.00.90

• Automotive

  No

• PPAP

  No

• Logic Function

  Shift Register/Latch/Driver

• Operation Mode

  Serial to Serial/Parallel

• Number of Elements per Chip

  1

• Number of Element Inputs

  1

• Number of Count Input Enables

  0

• Number of Selection Inputs per Element

  0

• Number of Element Outputs

  9

• Number of Stages

  8

• Direction Type

  Uni-Directional

• Triggering Type

  Positive-Edge

• Minimum Operating Supply Voltage (V)

  5

• Typical Operating Supply Voltage (V)

  9

• Maximum Operating Supply Voltage (V)

  12

• Parallel Enable Input

  No

• Terminal Count Output

  No

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  85

• Packaging

  Tube

• Mounting

  Through Hole

• Package Height

  3.3 mm

• Package Width

  6.35 mm

• Package Length

  19.81(Max) mm

• PCB changed

  16

• Standard Package Name

  DIP

• Supplier Package

  PDIP

• Pin Count

  16

• Lead Shape

  Through Hole
