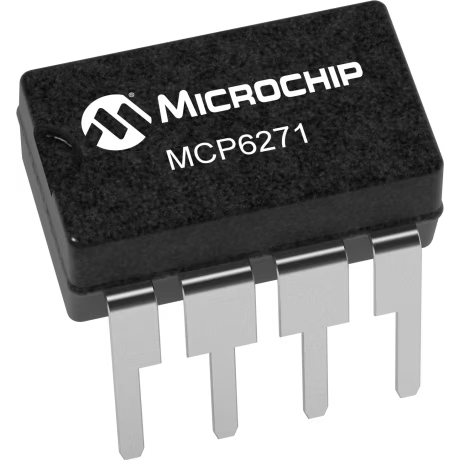

MCP6271-E/P

Op Amp Single GP R-R I/O 6V 8-Pin PDIP Tube Automotive AEC-Q100

Microchip Technology

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8542.33.00.01

• SVHC

  Yes

• Automotive

  Yes

• PPAP

  Yes

• Type

  General Purpose Amplifier

• Manufacturer Type

  General Purpose Amplifier

• Number of Channels per Chip

  1

• Rail to Rail

  Rail to Rail Input/Output

• Output Type

  CMOS

• Maximum Input Offset Voltage (mV)

  3@5.5V

• Minimum Single Supply Voltage (V)

  2

• Maximum Single Supply Voltage (V)

  6

• Maximum Input Bias Current (uA)

  0.005@5.5V@125C

• Typical Output Current (mA)

  30(Max)

• Power Supply Type

  Single

• Typical Slew Rate (V/us)

  0.9@5.5V

• Typical Input Noise Voltage Density (nV/rtHz)

  20@5.5V

• Typical Voltage Gain (dB)

  110

• Typical Noninverting Input Current Noise Density (pA/rtHz)

  0.003@5.5V

• Minimum PSRR (dB)

  70

• Minimum CMRR (dB)

  65

• Minimum CMRR Range (dB)

  70 to 71

• Typical Gain Bandwidth Product (MHz)

  2

• Shut Down Support

  No

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  125

• Supplier Temperature Grade

  Extended

• Packaging

  Tube

• Mounting

  Through Hole

• Package Height

  3.3

• Package Width

  6.35

• Package Length

  9.27

• PCB changed

  8

• Standard Package Name

  DIP

• Supplier Package

  PDIP

• Pin Count

  8

• Lead Shape

  Through Hole
