Analog to Digital Converters - ADCs

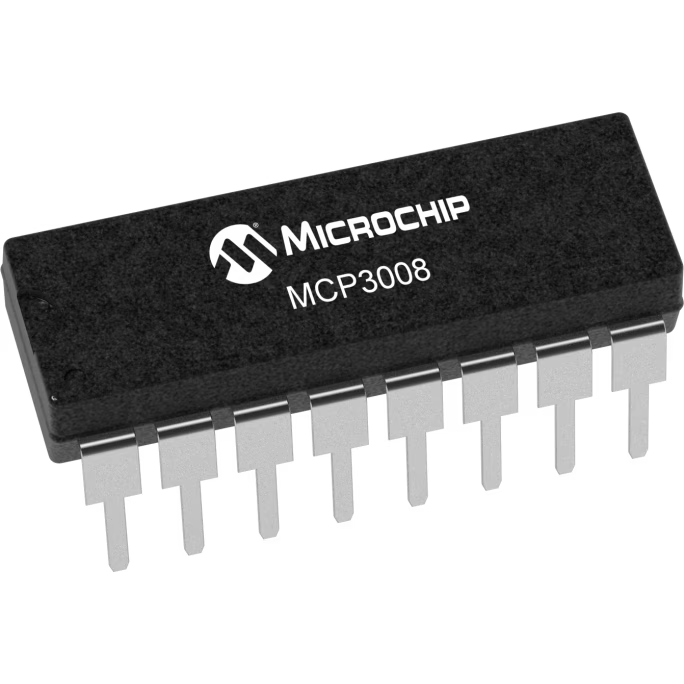

MCP3008-I/P

8-Channel Single ADC SAR 200ksps 10-bit Serial Automotive AEC-Q100 16-Pin PDIP Tube

Microchip Technology

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8542.39.00.30

• Automotive

  Yes

• PPAP

  Yes

• Converter Type

  General Purpose

• Architecture

  SAR

• Resolution

  10bit

• Number of ADCs

  1

• Number of Input Channels

  8|4

• Sampling Rate

  200ksps

• Interface Type

  Serial (4-Wire, SPI)

• Input Type

  Voltage

• Input Signal Type

  Single-Ended|Pseudo-Differential

• Voltage Reference

  External

• Polarity of Input Voltage

  Unipolar

• Voltage Supply Source

  Single

• Input Voltage

  5V

• Integral Nonlinearity Error

  ±1LSB

• Full Scale Error

  ±1LSB

• Sample and Hold

  Yes

• Single-Ended Input

  Yes

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  85

• Packaging

  Tube

• Supplier Temperature Grade

  Industrial

• Mounting

  Through Hole

• Package Height

  3.3

• Package Width

  6.35

• Package Length

  19.18

• PCB changed

  16

• Standard Package Name

  DIP

• Supplier Package

  PDIP

• Pin Count

  16

• Lead Shape

  Through Hole
