LIN Transceivers

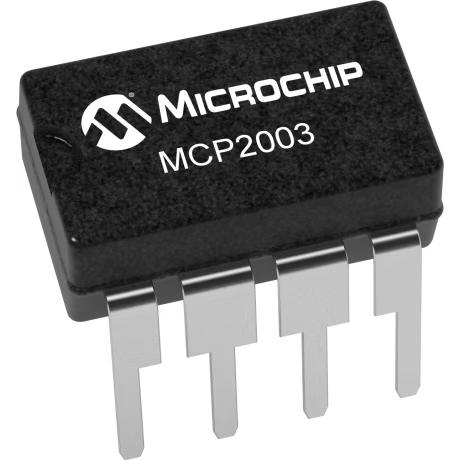

MCP2003-E/P

LIN Transceiver 20kBd 8-Pin PDIP Tube

Microchip Technology

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Obsolete

• HTS

  8542.39.00.60

• Automotive

  Yes

• PPAP

  Unknown

• Built-in Options

  Stand Alone

• LIN Specifications

  LIN 1.3|LIN 2.0|LIN 2.1

• LIN Bus Wake-up Capable

  No

• External Wake-up Pin

  Yes

• Maximum Data Rate (kBd)

  20

• Minimum LIN Bus Voltage (V)

  -18

• Maximum LIN Bus Voltage (V)

  40

• Minimum Single Supply Voltage (V)

  6

• Typical Single Supply Voltage (V)

  9|12|15|18|24

• Maximum Single Supply Voltage (V)

  27

• Maximum ESD Protection Voltage (kV)

  ±2@CDM/±8@HBM/±0.2@MM

• Maximum Supply Current (mA)

  1

• Power Supply Type

  Single

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  125

• Supplier Temperature Grade

  Extended

• Packaging

  Tube

• Mounting

  Through Hole

• Package Height

  3.3

• Package Width

  6.35

• Package Length

  9.27

• PCB changed

  8

• Standard Package Name

  DIP

• Supplier Package

  PDIP

• Pin Count

  8

• Lead Shape

  Through Hole
