MC27561-LION | ASME LION

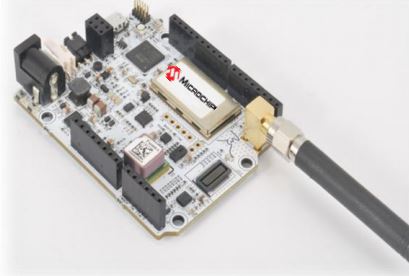

ASME Lion Product Description

The ASME Lion SoM features the Microchip Atmel D21 Ultra low-power microcontroller using the 32-bit ARM Cortex M0 processor that is supported by the Arduino IDE for fast and easy software development cycle.

The Lion Board provides the following peripherals/modules:

• •  Crypto Authentication Chipset
• •  LoRa Module
• •  GPS Module with Embedded Antenna
• •  Bluetooth Low Energy (BLE) Interface

Features

On-board LoRaWAN Protocol Stack:

• •  Environmentally friendly, RoHS compliant
• •  European R&TTE Directive Assessed Radio Module

RF/Analog Features:

• •  Low-Power Long-range Transceiver operating in the 433MHz and 868MHz frequency bands
• •  High Receiver Sensitivity: down to -146 dBm
• •  TC Power: adjustable up to +14 dBm high efficiency PA
• •  Up to 15km coverage at suburban and up to 5km coverage at urban area
