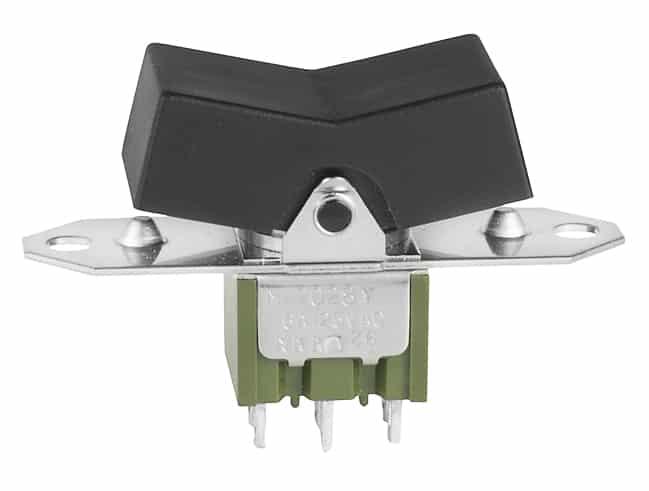

Switch Rocker

M2028TYW01-JA

Switch Rocker (ON) OFF (ON) DPDT Solder Lug Large Rocker 6A 250VAC 30VDC 50000Cycles

NKK Switches

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Obsolete

• HTS

  8536.50.90.65

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  No

• PPAP

  No

• Pole Throw Configuration

  DPDT

• Switch Configuration

  (ON) OFF (ON)

• Actuator Style

  Large Rocker

• Maximum Current Rating (A)

  6@125VAC

• Dielectric Strength

  1000VAC

• Minimum Insulation Resistance (MOhm)

  1000

• Maximum Contact Resistance (mOhm)

  10

• Electrical Life (Cycles)

  25000

• Mechanical Life (Cycles)

  50000

• Actuator Color

  Black

• Actuator Length (mm)

  26.78

• Number of Rows

  2

• Row Spacing (mm)

  4.8

• Mounting

  Panel Mount

• Termination Style

  Solder Lug

• Number of Terminals

  6

• Terminal Length (mm)

  4.5

• Terminal Pitch (mm)

  4.7

• Seal Location

  Terminals

• Seal Description

  Epoxy

• Color

  Black

• Body Orientation

  Straight

• Minimum Operating Temperature (°C)

  -30

• Maximum Operating Temperature (°C)

  85

• Body Length (mm)

  41.3

• Body Depth (mm)

  12.8

• Body Height (mm)

  13.5

• Product Length (mm)

  41.3

• Product Depth (mm)

  15.11

• Product Height (mm)

  29

• Actuator Depth (mm)

  15.11

• Actuator Height (mm)

  11
