DC to DC Converter and Switching Regulator Module

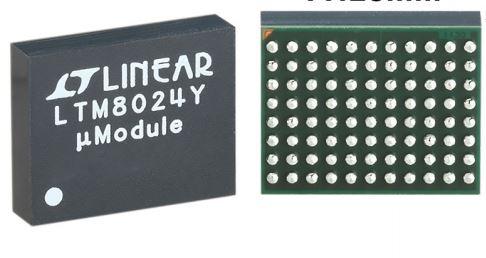

LTM8024IY#PBF

40VIN, Dual 3.5A or Single 7A Silent Switcher μModule Regulator

Analog Devices

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8542.39.00.90

• Automotive

  Yes

• PPAP

  No

• Type

  Step Down

• Number of Outputs

  2

• Isolation

  Non-Isolated

• Minimum Input Voltage (V)

  3

• Maximum Input Voltage (V)

  40

• Output Voltage (V)

  0.8 to 8

• Output Current (A)

  3.5

• Input/Output Type

  DC/DC

• Typical Standby Current (mA)

  0.005

• Maximum Switching Frequency (kHz)

  200 to 3000

• Switching Regulator

  Yes

• Load Regulation

  0.4%(Typ)

• Line Regulation

  0.2%(Typ)

• On/Off Logic

  Positive

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  125

• Supplier Temperature Grade

  Industrial

• Packaging

  Tray

• Product Weight (g)

  1

• Output Type

  Adjustable

• Mounting

  Surface Mount

• Package Height

  2.82

• Package Width

  9

• Package Length

  11.25

• PCB changed

  88

• Standard Package Name

  BGA

• Supplier Package

  BGA

• Pin Count

  88
