DC to DC Converter and Switching Regulator Module

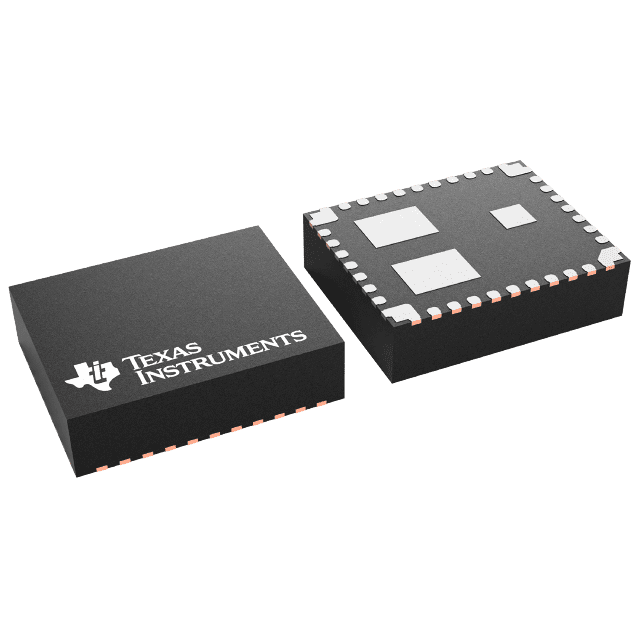

LMZ30602RKGT

Module DC-DC 1-OUT 0.8V to 3.6V 2A 39-Pin B1QFN T/R

Texas Instruments

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  COMPONENTS

• Automotive

  No

• PPAP

  No

• Type

  Step Down

• Number of Outputs

  1

• Isolation

  Non-Isolated

• Minimum Input Voltage (V)

  2.95

• Maximum Input Voltage (V)

  6

• Output Voltage (V)

  0.8 to 3.6

• Output Current (A)

  2

• Input/Output Type

  DC/DC

• Typical Standby Current (mA)

  0.07

• Maximum Switching Frequency (kHz)

  600

• Switching Regulator

  Yes

• Load Regulation

  0.1%(Typ)

• Line Regulation

  0.1%(Typ)

• Efficiency (%)

  95(Typ)

• On/Off Logic

  Positive

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  85

• Packaging

  Tape and Reel

• Product Weight (g)

  0.85

• Output Type

  Adjustable

• Mounting

  Surface Mount

• Package Height

  2.78

• Package Width

  9

• Package Length

  11

• PCB changed

  39

• Standard Package Name

  QFN

• Supplier Package

  B1QFN

• Pin Count

  39

• Lead Shape

  No Lead
