Clock Generators and Synthesizers

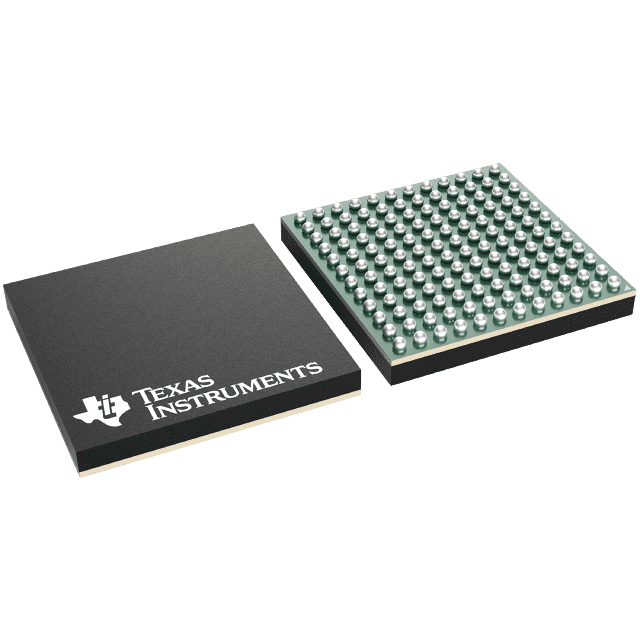

LMK04616ZCRR

Clock Generator 5MHz to 600MHz-IN 2000MHz-OUT 144-Pin NFBGA T/R

Texas Instruments

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  COMPONENTS

• Automotive

  No

• PPAP

  No

• Number of Outputs per Chip

  16

• Clock Input Frequency (MHz)

  5 to 600

• Maximum Output Frequency (MHz)

  2000

• Typical Duty Cycle (%)

  50

• Input Logic Level

  LVCMOS|LVDS|LVPECL

• Output Logic Level

  HSCL|HSDS|LVDS|LVPECL

• Minimum Operating Supply Voltage (V)

  1.7

• Maximum Operating Supply Voltage (V)

  3.465

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  85

• Supplier Temperature Grade

  Industrial

• Packaging

  Tape and Reel

• Mounting

  Surface Mount

• Package Height

  0.95 mm

• Package Width

  10.1(Max) mm

• Package Length

  10.1(Max) mm

• PCB changed

  144

• Standard Package Name

  BGA

• Supplier Package

  NFBGA

• Pin Count

  144

• Lead Shape

  Ball
