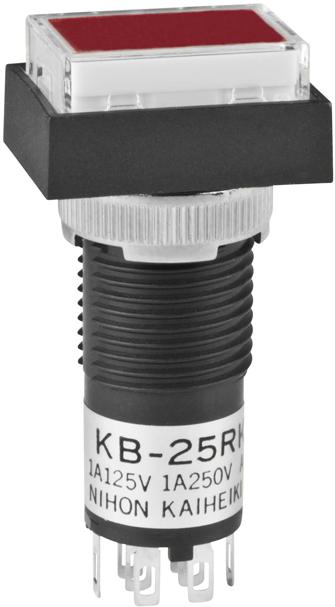

Switch Push Button

KB25RKW01-5C-JC

Switch Push Button ON (ON) DPDT Rectangular Button 1A 250VAC 30VDC Momentary Panel Mount Solder Lug

NKK Switches

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Obsolete

• HTS

  8536.50.90.31

• Automotive

  No

• PPAP

  No

• Switch Function

  Momentary

• Pole Throw Configuration

  DPDT

• Actuator Style

  Rectangular Button

• Switch Configuration

  ON (ON)

• Bushing Type

  Threaded

• Maximum Current Rating (A)

  1@250VAC 30VDC

• Dielectric Strength

  1000VAC

• Minimum Insulation Resistance (MOhm)

  1000

• Maximum Contact Resistance (mOhm)

  50

• Electrical Life (Cycles)

  50000

• Mechanical Life (Cycles)

  100000

• Actuator Color

  Clear/Red

• Actuator Length (mm)

  3.5

• Number of Rows

  2

• Row Spacing (mm)

  3.4

• Mounting

  Panel Mount

• Termination Style

  Solder Lug

• Number of Terminals

  6

• Terminal Length (mm)

  5

• Terminal Pitch (mm)

  2.54

• Illumination Color

  Red

• Base Material

  Polyamide

• Housing Material

  Polyamide

• Body Orientation

  Straight

• Minimum Operating Temperature (°C)

  -25

• Maximum Operating Temperature (°C)

  50

• Thread Size

  M12P1

• Bushing Length (mm)

  14.2

• Body Height (mm)

  10.5

• Product Length (mm)

  14

• Product Depth (mm)

  18.5

• Product Height (mm)

  38.5
