Digital Isolators

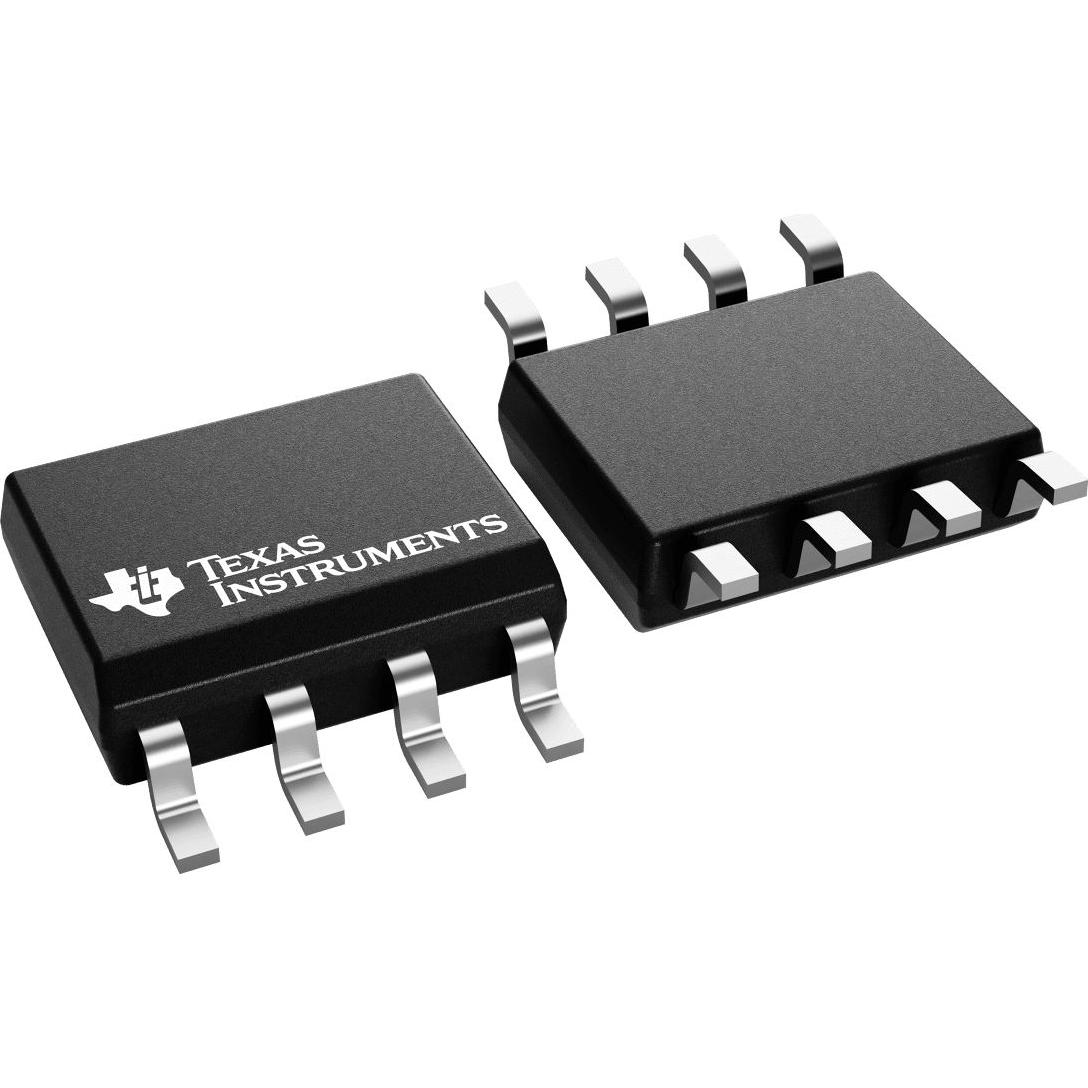

ISO1640BDRG4

Digital Isolator 2-CH 8-Pin SOIC T/R

Texas Instruments

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• Automotive

  No

• PPAP

  No

• Number of Channels per Chip

  2

• Maximum Operating Supply Voltage (V)

  5.5

• Minimum Operating Supply Voltage (V)

  3

• Maximum Output Current Drive (mA)

  15

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  125

• Typical Operating Supply Voltage (V)

  5|3.3

• Minimum Common Mode Rejection (kV/us)

  50

• Coupling Type

  Capacitive Coupling

• Mounting

  Surface Mount

• Package Height

  1.5(Max)

• Package Width

  3.9

• Package Length

  4.91

• PCB changed

  8

• Standard Package Name

  SO

• Supplier Package

  SOIC

• Pin Count

  8
