Product Technical Specifications
EU RoHS
Compliant with Exemption
ECCN (US)
EAR99
Part Status
Active
HTS
8541.29.00.55
SVHC
Yes
SVHC Exceeds Threshold
Yes
Automotive
No
PPAP
No
Category
Power MOSFET
Configuration
Single
Channel Mode
Enhancement
Channel Type
N
Number of Elements per Chip
1
Maximum Drain-Source Voltage (V)
150
Maximum Gate-Source Voltage (V)
20
Maximum Gate Threshold Voltage (V)
4.6
Maximum Continuous Drain Current (A)
120
Maximum Drain-Source Resistance (mOhm)
5.1@10V
Typical Gate Charge @ Vgs (nC)
80@10V
Typical Gate Charge @ 10V (nC)
80
Typical Gate to Drain Charge (nC)
16
Typical Input Capacitance @ Vds (pF)
6000@75V
Typical Output Capacitance (pF)
1500
Maximum Power Dissipation (mW)
300000
Typical Fall Time (ns)
37
Typical Rise Time (ns)
5.3
Typical Turn-Off Delay Time (ns)
4.5
Typical Turn-On Delay Time (ns)
19.6
Minimum Operating Temperature (°C)
-55
Maximum Operating Temperature (°C)
175
Packaging
Tube
Typical Drain-Source Resistance @ 25°C (mOhm)
4.3@8V|4@10V
Maximum Pulsed Drain Current @ TC=25°C (A)
480
Mounting
Through Hole
Package Height
9.25
Package Width
4.4
Package Length
10
PCB changed
3
Tab
Tab
Standard Package Name
TO
Supplier Package

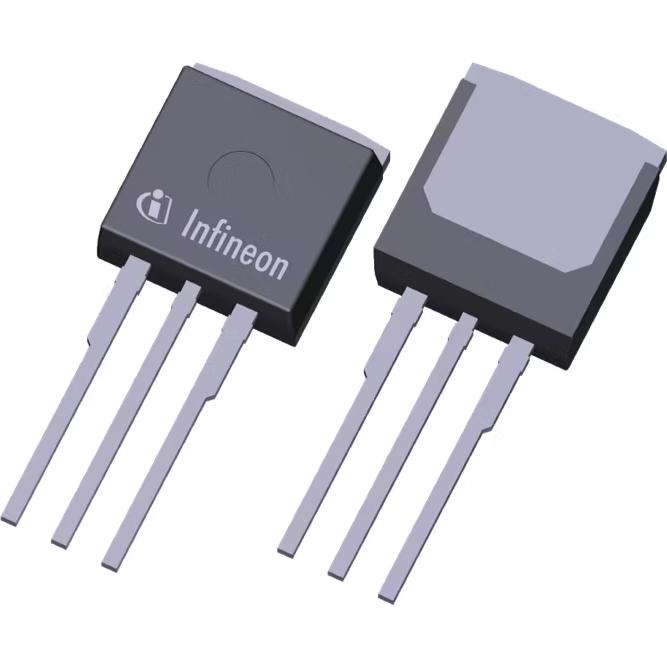

TO-262
Pin Count
3
Lead Shape
Through Hole
