Special Purpose Amplifiers

INA223AIDSKT

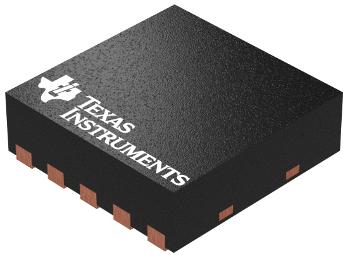

SP Amp Current Sense Amp Single 5.5V 10-Pin WSON EP T/R

Texas Instruments

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Obsolete

• HTS

  INA223AIDSKT

• Automotive

  No

• PPAP

  No

• Type

  Current Sense Amplifier

• Number of Elements per Chip

  1

• Number of Channels per Chip

  1

• Typical Gain Bandwidth Product (MHz)

  0.025

• Maximum Voltage Gain Range (dB)

  35 to 50

• Maximum Voltage Gain (dB)

  49.54(Typ)

• Minimum CMRR Range (dB)

  95 to 105

• Minimum CMRR (dB)

  100

• Minimum PSRR (dB)

  116.478(Typ)

• Maximum Input Offset Voltage (mV)

  0.02@3.3V

• Maximum Operating Supply Voltage (V)

  5.5

• Maximum Supply Voltage Range (V)

  5 to 7

• Minimum Single Supply Voltage (V)

  2.7

• Typical Single Supply Voltage (V)

  3|5

• Maximum Single Supply Voltage (V)

  5.5

• Maximum Input Bias Current (uA)

  25@3.3V

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  105

• Supplier Temperature Grade

  Extended

• Packaging

  Tape and Reel

• Power Supply Type

  Single

• Mounting

  Surface Mount

• Package Height

  0.75(Max)

• Package Width

  2.6(Max)

• Package Length

  2.6(Max)

• PCB changed

  10

• Standard Package Name

  SON

• Supplier Package

  WSON EP

• Pin Count

  10

• Lead Shape

  No Lead
