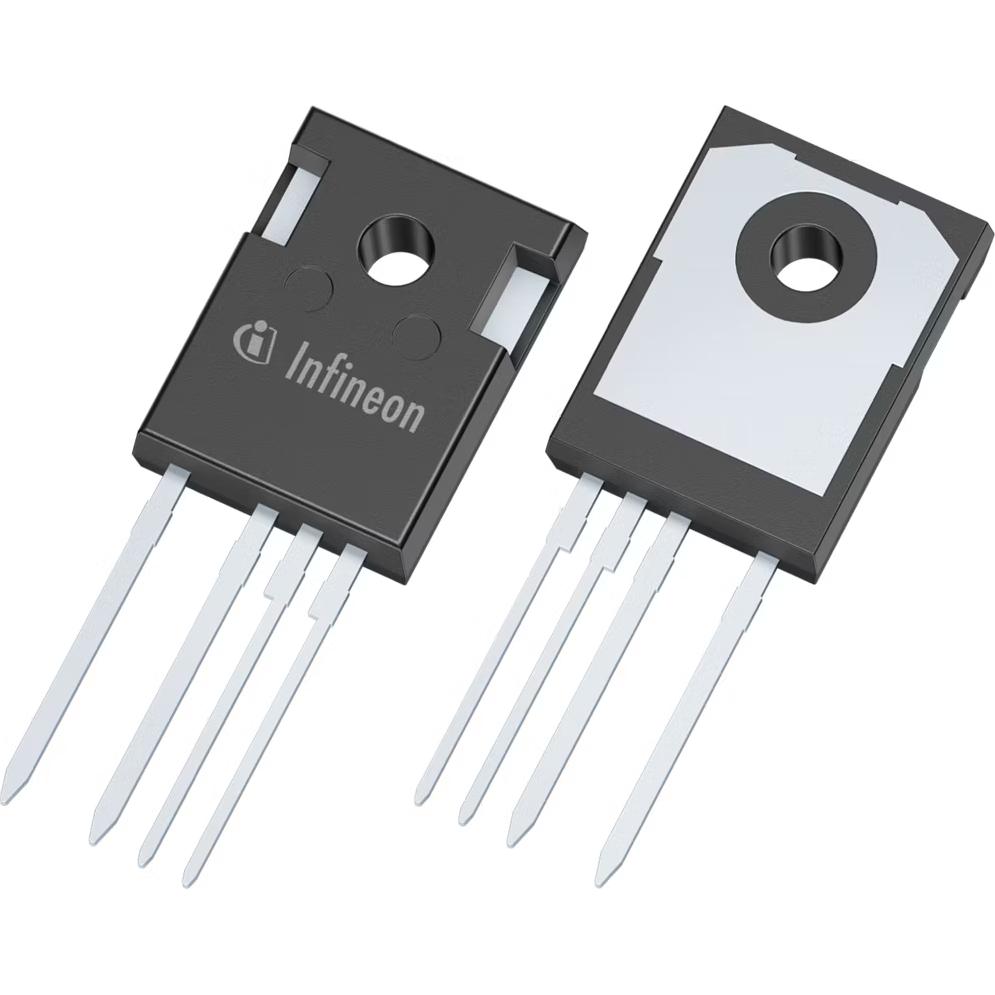

IGBT Chip

IKZA50N65RH5XKSA1

IGBT Discrete Chip

Infineon Technologies AG

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  NRND

• HTS

  8541.29.00.55

• Automotive

  No

• PPAP

  No

• Typical Collector-Emitter Saturation Voltage (V)

  1.65

• Mounting

  Through Hole

• Package Height

  21.1(Max)

• Package Width

  5.1(Max)

• Package Length

  15.9(Max)

• PCB changed

  4

• Tab

  Tab

• Standard Package Name

  TO

• Supplier Package

  TO-247

• Pin Count

  4
