IGBT Chip

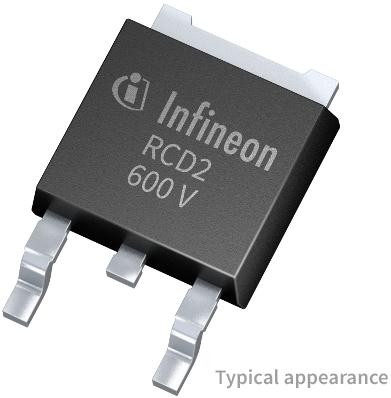

IKD10N60RC2ATMA1

Cost Effective Monolithic Integrated IGBT with Diode

Infineon Technologies AG

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8541.29.00.55

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  No

• PPAP

  No

• Typical Collector-Emitter Saturation Voltage (V)

  2

• Packaging

  Tape and Reel

• Mounting

  Surface Mount

• Package Height

  2.3 mm

• Package Width

  6.22 mm

• Package Length

  6.5 mm

• PCB changed

  2

• Tab

  Tab

• Standard Package Name

  TO

• Supplier Package

  DPAK

• Pin Count

  3
