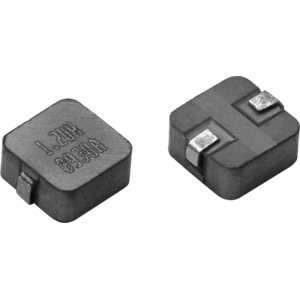

VishayIHLP1212AEER1R0M11Inductor Surface Mount
Power Choke Shielded Wirewound 1uH 20% 100KHz Powdered Iron 3.9A 0.033Ohm DCR 1212 T/R
| Compliant | |
| EAR99 | |
| Obsolete | |
| 8504.50.80.00 | |
| Automotive | No |
| PPAP | No |
| Power Choke | |
| Wirewound | |
| Shielded | |
| Powdered Iron | |
| 1u | |
| 20% | |
| 100K | |
| 3.9(Typ) | |
| 5.3(Typ) | |
| 0.033 | |
| 99M(Typ) | |
| 2 | |
| 1212 | |
| -55 | |
| 125 | |
| Tape and Reel | |
| 3.65 | |
| Surface Mount | |
| 3.2 | |
| 1.5 |
Make any circuit look clean and compact using this power IHLP1212AEER1R0M11 surface mount inductor from Vishay. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 3.9(Typ) A with a maximum resistance of 33m Ohm. This product is 3.65 mm long, 1.5 mm tall and 3.2 mm deep. This device is made with wirewound technology. Its test frequency is 100K Hz. It has an inductance of 1u H.
