MOSFETs

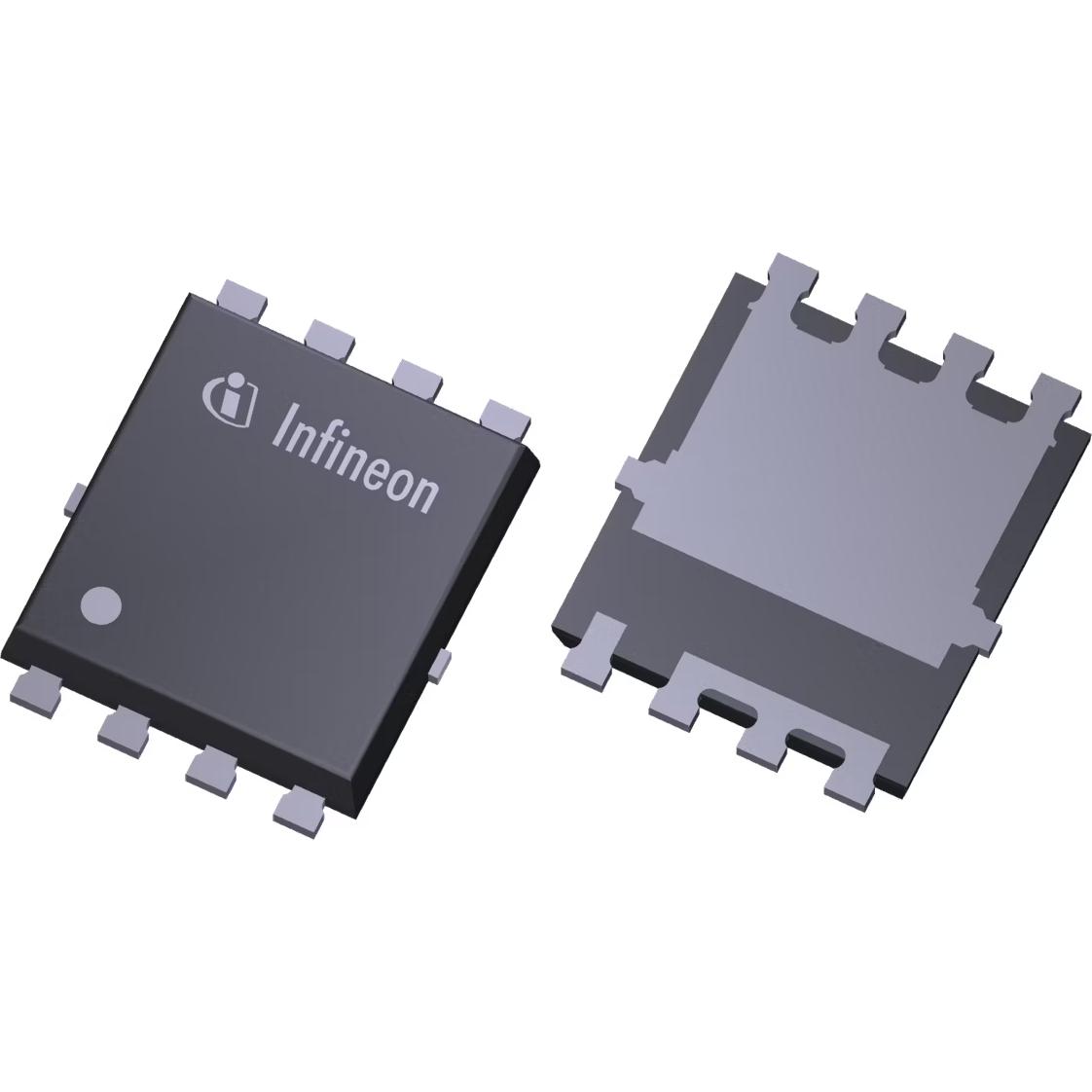

IAUCN10S7N040ATMA1

Trans MOSFET N-CH 100V 130A 8-Pin TDSON EP T/R Automotive AEC-Q101

Infineon Technologies AG

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8541.29.00.55

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  Yes

• PPAP

  Unknown

• Category

  Power MOSFET

• Configuration

  Single Quad Drain Triple Source

• Channel Mode

  Enhancement

• Channel Type

  N

• Number of Elements per Chip

  1

• Maximum Drain-Source Voltage (V)

  100

• Maximum Gate-Source Voltage (V)

  ±20

• Operating Junction Temperature (°C)

  -55 to 175

• Maximum Continuous Drain Current (A)

  130

• Maximum Drain-Source Resistance (mOhm)

  4@10V

• Typical Gate Charge @ Vgs (nC)

  39.3@10V

• Typical Gate Charge @ 10V (nC)

  39.3

• Typical Input Capacitance @ Vds (pF)

  2815@50V

• Maximum Power Dissipation (mW)

  142000

• Typical Fall Time (ns)

  9.9

• Typical Rise Time (ns)

  8

• Typical Turn-Off Delay Time (ns)

  16.8

• Typical Turn-On Delay Time (ns)

  10.1

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  175

• Supplier Temperature Grade

  Automotive

• Mounting

  Surface Mount

• Package Height

  1

• Package Width

  5.48

• Package Length

  5.15

• PCB changed

  8

• Supplier Package

  TDSON EP

• Pin Count

  8
