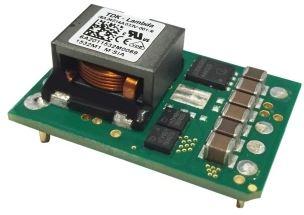

DC to DC Converter and Switching Regulator Module

I6A24014A033V-002-R

Module DC-DC 1-OUT 3.3V to 24V 14A 250W 11-Pin 1/16-Brick

TDK-Lambda

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8504.40.95.30

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  No

• PPAP

  No

• Type

  Step Up|Inverting|Non-Inverting|Step Down

• Isolation

  Non-Isolated

• Number of Outputs

  1

• Minimum Input Voltage (V)

  9

• Maximum Input Voltage (V)

  40

• Output Voltage (V)

  3.3 to 24

• Output Current (A)

  14

• Output Power (W)

  250

• Input/Output Type

  DC/DC

• Maximum Switching Frequency (kHz)

  400

• Switching Regulator

  Yes

• Load Regulation

  1%

• Line Regulation

  0.3%

• Efficiency (%)

  98

• On/Off Logic

  Positive

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  125

• Product Weight (g)

  15

• Output Type

  Adjustable

• Mounting

  Through Hole

• Package Height

  12.7 mm

• Package Width

  22.9 mm

• Package Length

  33 mm

• PCB changed

  11

• Supplier Package

  1/16-Brick

• Pin Count

  11
