LED Drivers

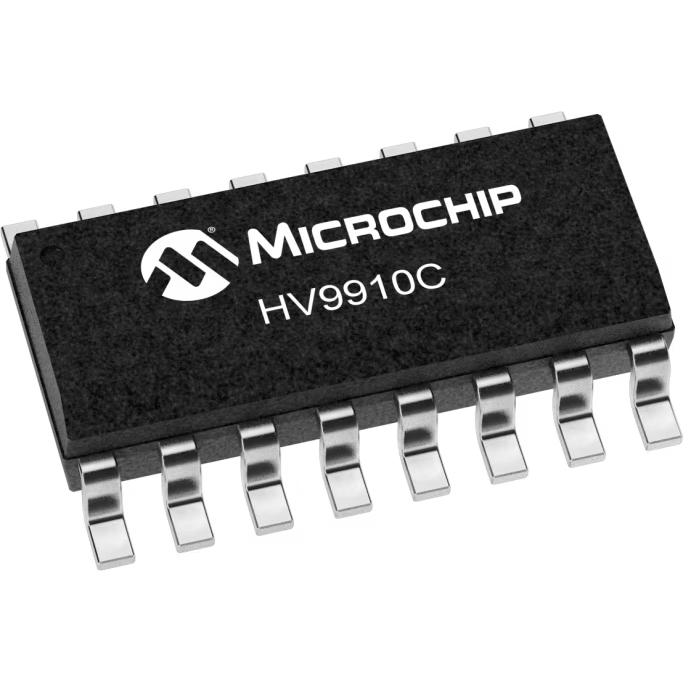

HV9910CNG-G

LED Driver 1500uA Supply Current 16-Pin SOIC N Tube

Microchip Technology

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8542.39.00.60

• Automotive

  No

• PPAP

  No

• Minimum Operating Supply Voltage (V)

  15

• Maximum Operating Supply Voltage (V)

  450

• Typical Operating Supply Voltage (V)

  18|24

• Maximum Supply Current (uA)

  1500

• Maximum Power Dissipation (mW)

  1300

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  125

• Packaging

  Tube

• Mounting

  Surface Mount

• Package Height

  1.65(Max)

• Package Width

  3.9

• Package Length

  9.9

• PCB changed

  16

• Standard Package Name

  SO

• Supplier Package

  SOIC N

• Pin Count

  16

• Lead Shape

  Gull-wing
