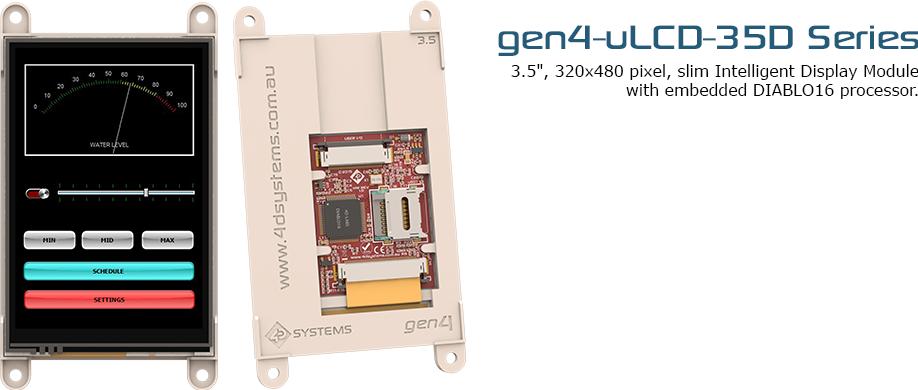

GEN4-ULCD-35DT

3.5", 320x480 pixels, slim Intelligent Display Module with embedded DIABLO16 processor and Resistive Touch panel

4D Systems

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8531.20.00.20

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  Unknown

• PPAP

  Unknown

• Display Mode

  Transmissive

• Display Size (in)

  3.5

• Pixel Format (Pixels)

  320x480

• Typical Contrast Ratio

  250:1

• Typical Brightness (cd/m2)

  182

• Backlight

  LED

• Display Color (Colors)

  65,000

• Viewing Angle (°)

  110/90

• Touchscreen

  Yes

• Active Area (mm)

  73.44x48.96

• Outline Dimensions (mm)

  101.1x56.6x7

• Interface Type

  GPIO/I2C/SPI

• Minimum Operating Supply Voltage (V)

  4

• Typical Operating Supply Voltage (V)

  5

• Maximum Operating Supply Voltage (V)

  5.5

• Minimum Operating Temperature (°C)

  -10

• Maximum Operating Temperature (°C)

  60

• Packaging

  Foam

• Mounting

  Panel

• Package Height

  7

• Package Width

  56.6

• Package Length

  101.1

• PCB changed

  30

• Pin Count

  30
