AC to DC Power Supplies

GB10S09K01

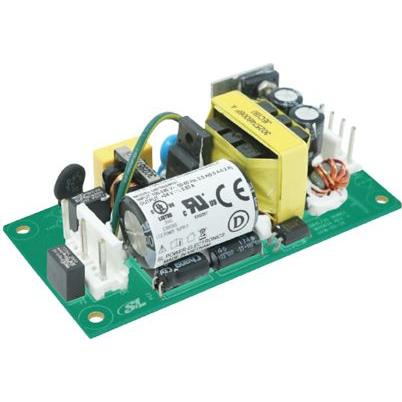

AC/DC Power Supply Single-OUT 9V 1A 10W 7-Pin

SL Power / Advanced Energy

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• Automotive

  Unknown

• PPAP

  Unknown

• Type

  Regulated

• Style

  Open Frame

• Input/Output Type

  AC/DC

• Number of Outputs

  1

• Output Type

  Fixed

• Output Voltage (V)

  9

• Output Current (A)

  1

• Output Power (W)

  10

• Minimum AC Input Voltage (V)

  90

• Maximum AC Input Voltage (V)

  264

• Minimum Isolation Voltage

  4000VAC

• Line Regulation

  1%

• Load Regulation

  5%

• Maximum Input Current (A)

  0.45

• Input Frequency (Hz)

  47 to 63

• Efficiency (%)

  88(Typ)

• Configurable

  No

• Input Connector Type

  Pin Terminal Block

• Output Connector Type

  Pin Terminal Block

• Power Indicator

  No

• Ripple and Noise

  90mV

• Medical

  Yes

• Minimum Operating Temperature (°C)

  -20

• Maximum Operating Temperature (°C)

  70

• Product Weight (g)

  100

• Mounting

  Chassis

• Package Height

  24.8

• Package Width

  40

• Package Length

  82

• PCB changed

  7

• Pin Count

  7
