FW-50-05-G-D-530-120-A

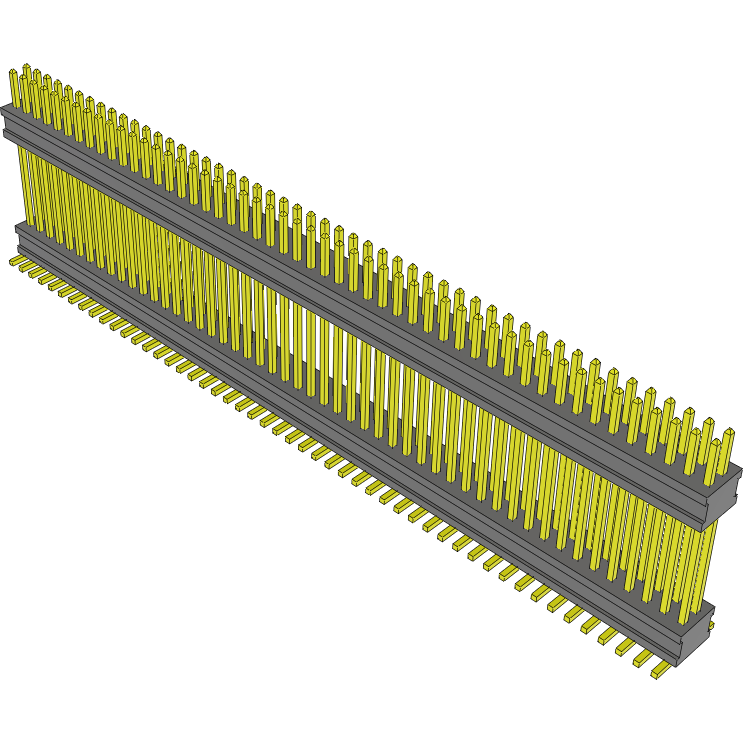

Conn Board Stacker HDR 100 POS 1.27mm Solder ST Top Entry SMD FLEX STACK™ Tube

Samtec

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.40

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  No

• PPAP

  No

• Type

  Board Stacker

• Gender

  HDR

• Number of Contacts

  100

• Number of Rows

  2

• Termination Method

  Solder

• Terminal Pitch (mm)

  1.27

• Body Orientation

  Straight

• Row Spacing (mm)

  1.27

• Speed Rating (Gbps)

  4

• Maximum Current Rating (A)

  4.2/Contact

• Maximum Voltage Rating

  280VAC

• Insulation Resistance (MOhm)

  5000

• Maximum Contact Resistance (mOhm)

  15

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  125

• Mating Cycle (Cycles)

  500

• Packaging

  Tube

• Product Length (mm)

  63.5

• Product Depth (mm)

  5.82

• Product Height (mm)

  16.51

• Tradename

  FLEX STACK™

• Contact Plating Thickness

  (0.25/1.27)um

• Mounting

  Surface Mount
