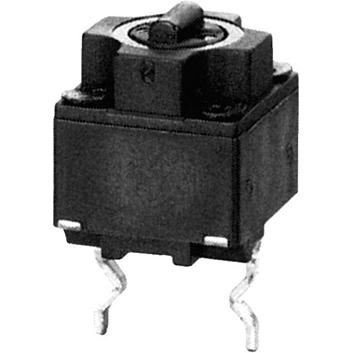

Switch Tactile

EVQ-P0E07K

Switch Tactile N.O. SPST Button PC Pins 0.05A 30VDC 0.74N Thru-Hole Bulk

Panasonic Industry

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  COMPONENTS

• Automotive

  No

• PPAP

  No

• Type

  Light Touch

• Pole Throw Configuration

  SPST

• Actuator Style

  Button

• Switch Configuration

  N.O.

• Maximum Current Rating (A)

  0.05@30VDC

• Dielectric Strength

  600VAC

• Minimum Insulation Resistance (MOhm)

  100

• Maximum Contact Resistance (mOhm)

  100

• Electrical Life (Cycles)

  5000000

• Operating Force (N)

  0.74

• Actuator Color

  Black

• Actuator Length (mm)

  0.45

• Number of Rows

  1

• Mounting

  Through Hole

• Termination Style

  PC Pins

• Number of Terminals

  2

• Terminal Length (mm)

  3.5

• Terminal Pitch (mm)

  5

• Body Orientation

  Straight

• Minimum Operating Temperature (°C)

  -25

• Maximum Operating Temperature (°C)

  65

• Packaging

  Bulk

• Body Length (mm)

  6.2

• Body Depth (mm)

  6.2

• Body Height (mm)

  6.7

• Product Length (mm)

  6.2

• Product Depth (mm)

  6.2

• Product Height (mm)

  7.45
