Connector Headers and PCB Receptacles

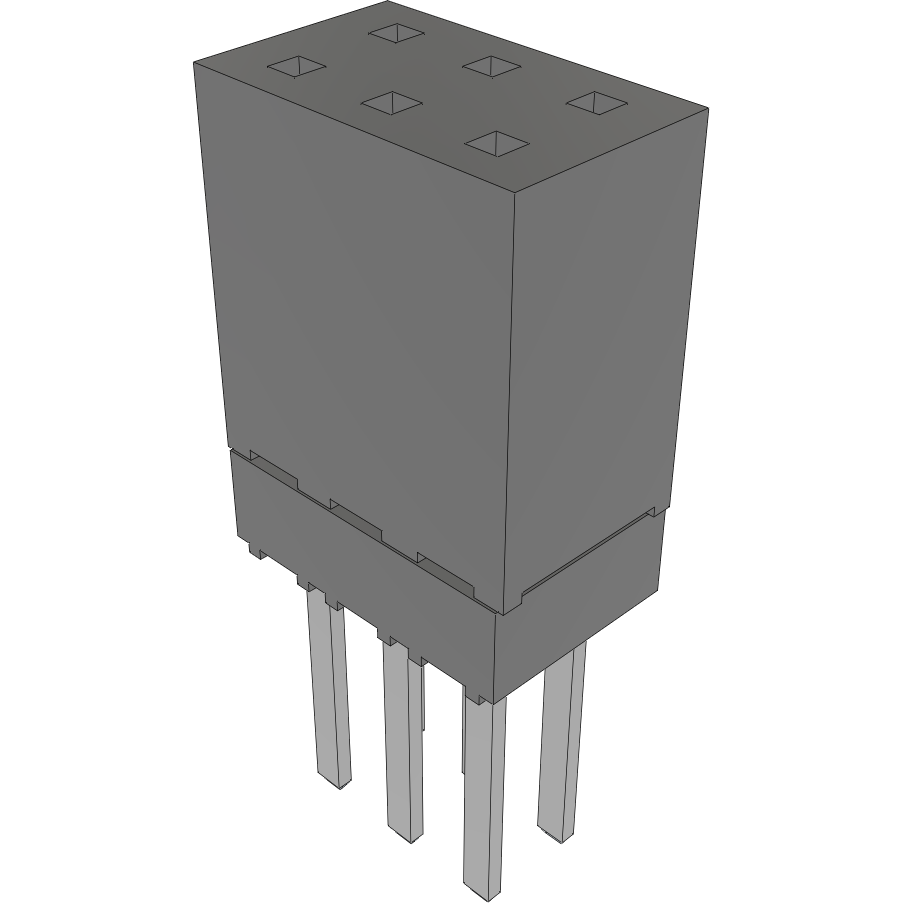

ESW-103-13-S-D-LL

Conn Elevated Socket RCP 6 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk

Samtec

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  EA

• Automotive

  No

• PPAP

  No

• Type

  Elevated Socket

• Gender

  RCP

• Number of Contacts

  6

• Number of Rows

  2

• Termination Method

  Solder

• Terminal Pitch (mm)

  2.54

• Body Orientation

  Straight

• Row Spacing (mm)

  2.54

• Maximum Current Rating (A)

  5.2/Contact

• Maximum Voltage Rating

  728VDC, 515VAC

• Maximum Contact Resistance (mOhm)

  10

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  125

• Mating Cycle (Cycles)

  100

• Packaging

  Bulk

• Product Length (mm)

  8.13

• Product Depth (mm)

  4.95

• Product Height (mm)

  11.05

• Mounting

  Through Hole
