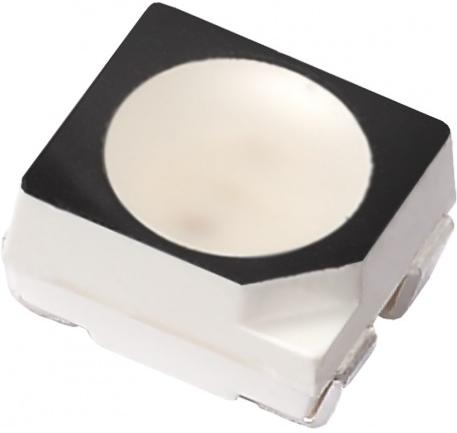

EAPL3528RGBA0

LED Tri-Color Blue/Green/Red 468nm/518nm/632nm 4-Pin SMD T/R

EVERLIGHT Electronics Co., Ltd

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8541.41.00.00

• Automotive

  No

• PPAP

  No

• Type

  Tri-Color

• Category

  Chip LED

• Color

  Blue/Green/Red

• Number of LEDs

  3

• LED Material

  InGaN/InGaN/AlGaInP

• Lens Shape Type

  Circular

• Lens Appearance

  Colorless Non Diffused

• Mounting Orientation

  Top Mount

• Typical Intensity

  310mcd(Max)|1350mcd(Max)|288mcd(Max)

• Dominant Wavelength (nm)

  471.5(Max)/533(Max)/627.5(Max)

• Peak Wavelength (nm)

  468/518/632

• Viewing Angle (°)

  120

• Maximum Forward Current (mA)

  25

• Test Current (mA)

  20

• Maximum Forward Voltage (V)

  3.6/3.6/2.6

• Reverse Voltage (V)

  5

• Maximum Power Dissipation (mW)

  95/95/60

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  85

• Lead Standoff

  No

• Supplier Color

  Brilliant Blue/Brilliant Green/Brilliant Red

• High Power

  No

• High Brightness

  No

• Packaging

  Tape and Reel

• Mounting

  Surface Mount

• Package Height

  1.84

• Package Width

  3.2

• Package Length

  2.8

• PCB changed

  4

• Supplier Package

  SMD

• Pin Count

  4
