LED Displays Segmented

EADSS040RA2

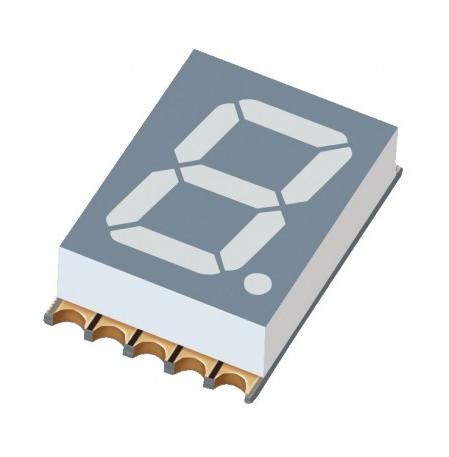

Displays Module 1DIGIT 8LED Brilliant Red CA 10-Pin DIP SMD Module T/R

EVERLIGHT Electronics Co., Ltd

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8531.20.00.40

• Automotive

  No

• PPAP

  No

• Type

  Module

• Number of Digits

  1

• Color

  Brilliant Red

• Number of LEDs

  8

• Digit Size (in)

  0.39

• Character Displayed

  Numeric

• Intensity (ucd)

  17600

• Dominant Wavelength (nm)

  624

• Peak Wavelength (nm)

  632

• Configuration

  Common Anode

• Maximum Forward Current (mA)

  25

• Maximum Reverse Current (uA)

  10

• Test Current (mA)

  10

• Maximum Reverse Voltage (V)

  5

• Maximum Forward Voltage (V)

  2.4

• Maximum Power Dissipation (mW)

  60

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  105

• Packaging

  Tape and Reel

• Mounting

  Surface Mount

• Package Height

  3.75

• Package Width

  15

• Package Length

  9.8

• PCB changed

  10

• Standard Package Name

  DIP

• Supplier Package

  DIP SMD Module

• Pin Count

  10
