Current Limit Switches

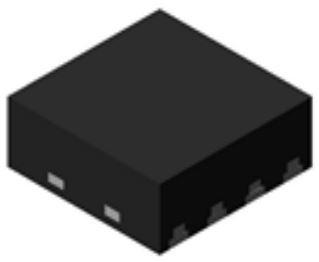

DML3006LFDS-7

Current Limit SW 1-IN 1-OUT 0.5V to 13.5V 10A 8-Pin VDFN EP T/R

Diodes Incorporated

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  COMPONENTS

• Automotive

  No

• PPAP

  No

• Number of Inputs

  1

• Number of Outputs

  1

• Maximum Output Current (A)

  10

• Minimum Input Voltage (V)

  0.5

• Maximum Input Voltage (V)

  13.5

• Typical Switch On Resistance (mOhm)

  10.8

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  85

• Packaging

  Tape and Reel

• Mounting

  Surface Mount

• Package Height

  0.78

• Package Width

  2

• Package Length

  2

• PCB changed

  8

• Standard Package Name

  DFN

• Supplier Package

  VDFN EP

• Pin Count

  8
