Connector Headers and PCB Receptacles

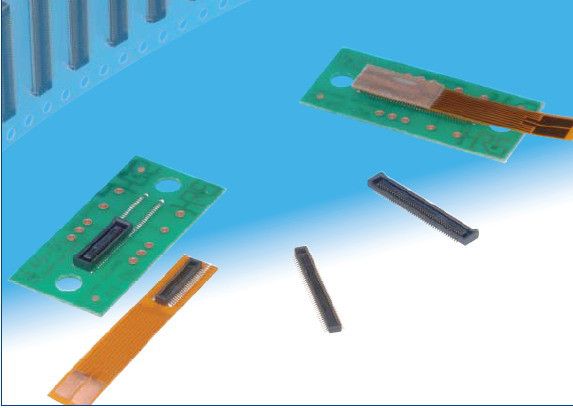

DF40HC(3.0)-100DS-0.4V(58)

Conn Board to Board RCP 100 POS 0.4mm Solder ST SMD Reel

Hirose Electric

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.40

• SVHC

  Yes

• Automotive

  Yes

• PPAP

  Yes

• Type

  Board to Board

• Gender

  RCP

• Number of Contacts

  100

• Number of Rows

  2

• Termination Method

  Solder

• Terminal Pitch (mm)

  0.4

• Body Orientation

  Straight

• Maximum Current Rating (A)

  0.3

• Maximum Voltage Rating

  50VDC|50VAC

• Insulation Resistance (MOhm)

  50

• Maximum Contact Resistance (mOhm)

  90

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  85

• Mating Cycle (Cycles)

  30

• Packaging

  Reel

• Product Length (mm)

  22.6

• Product Depth (mm)

  3.38

• Product Height (mm)

  2.9

• Mounting

  Surface Mount
